Our Products

ISO 9001-2015 certified manufacturer of LT & HT Panels, Auto Changeover, Inverters, DG Sets and Servo Voltage Stabilizers — tested and certified under CPRI & NTH.

Manufacturing Unit

Riddhi Siddhi Electrical Projects Pvt. Ltd.

Riddhi Siddhi Electrical manufactures various types of LT & HT Panels, Auto Changeover, Inverters, DG Sets and Servo Voltage Stabilizers. Products are tested and certified under CPRI & NTH. An ISO 9001-2015 certified company under NSIC & SSI (EM-II), RSEPPL products are marketed through its Sales and Associate Network all over India.

ISO 9001-2015CPRI CertifiedNTH CertifiedNSIC & SSI

Product Range

LT Electrical Panels

Low Tension panel range

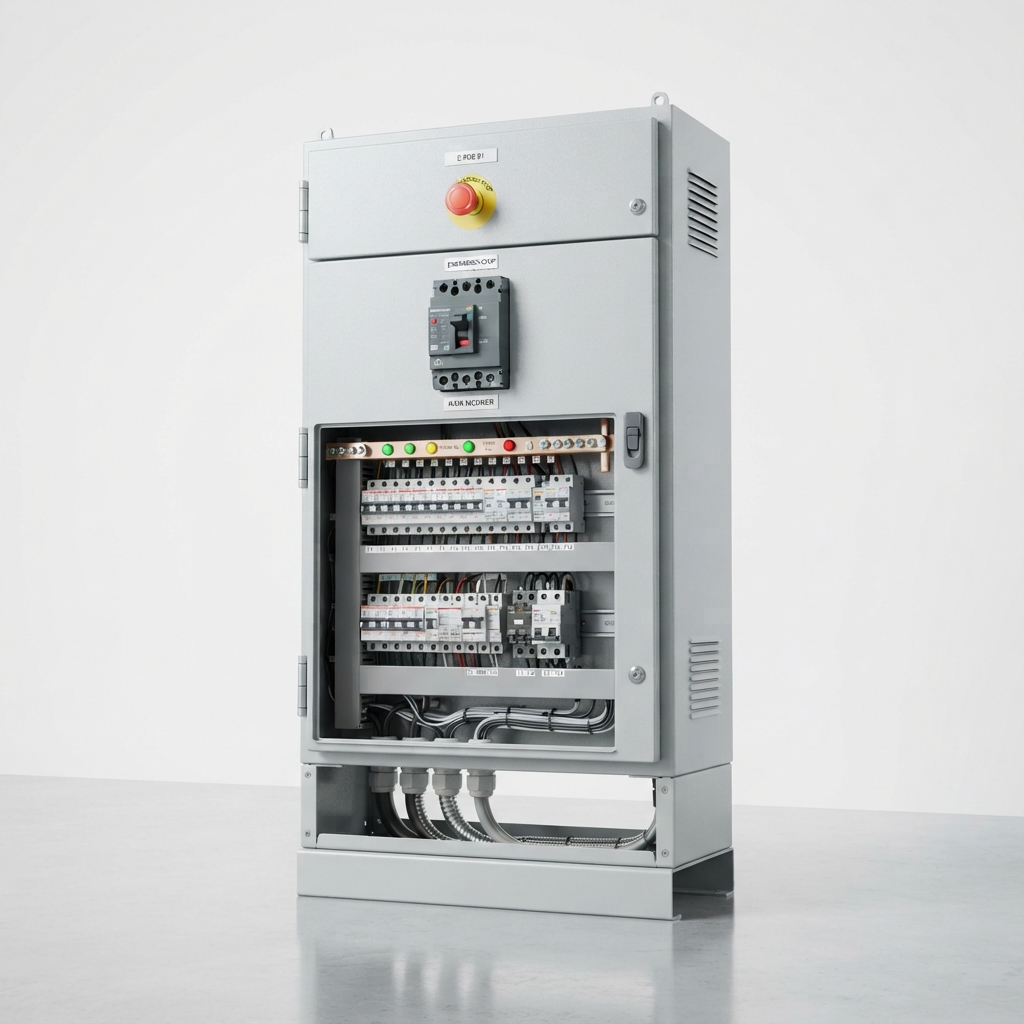

1Power Cum Motor Control Centre (PMCC)
2Power Control Centre (PCC)
3Motor Control Panel (MCC)
4Intelligent Motor Control Center
5Fire Fighting Panel
6APFC Panel (Power Factor Correction Panel)
7Soft Starter Panel / Drive Control Panel
8Power Distribution Board (PDB)
9AMF Control Panel
10DG Synchronizing Panel
11Main Lighting Distribution Board (MLDB)
12Lighting Distribution Board (LDB)
13Sub Lighting Distribution Board (SLDB)
14Emergency PDB
15Emergency MLDB
16Emergency LDB
17Control Desk with Mimic Diagram
18Main Switch Board
19Metering Panel with ACCT & MS Panel
20LT Bus Duct
21Local Push Button Control Station
22Junction Box
23Control & Relay Panel
24Feeder Pillars
25Instrument Panel
26Switch Socket Outlet
27Fuse Distribution Board

Visual Panels & Specifications

Explore physical layouts and technical capabilities of our LT systems (Drag or use buttons to slide)

Power Cum Motor Control Centre (PMCC)
01 / 27

Power Cum Motor Control Centre (PMCC)

Rating: Up to 6300A
Standard: IS/IEC 61439-1&2
IP Rating: IP54/IP55

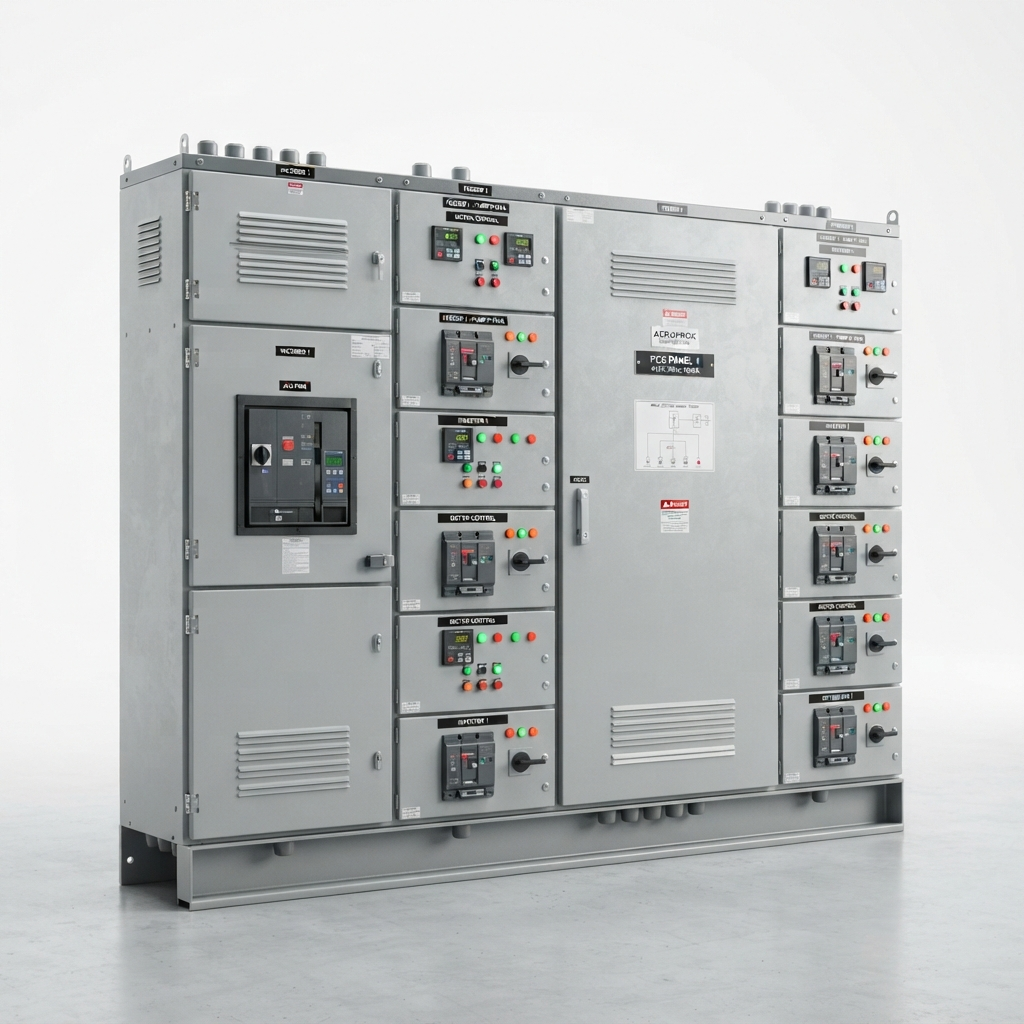

Power Control Centre (PCC)
02 / 27

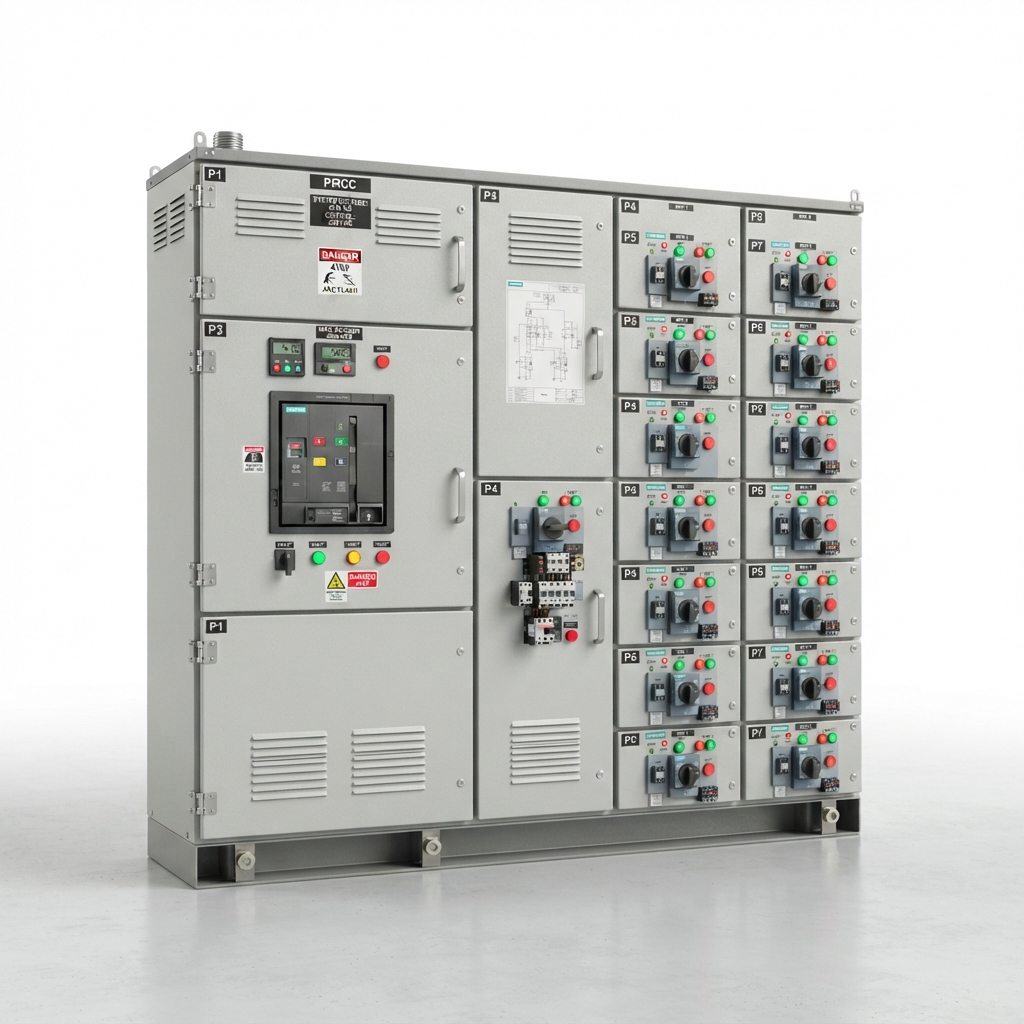

Power Control Centre (PCC)

Rating: Up to 6300A
Voltage: 415V LT
Busbar: Copper/Aluminium
Motor Control Panel (MCC)
03 / 27

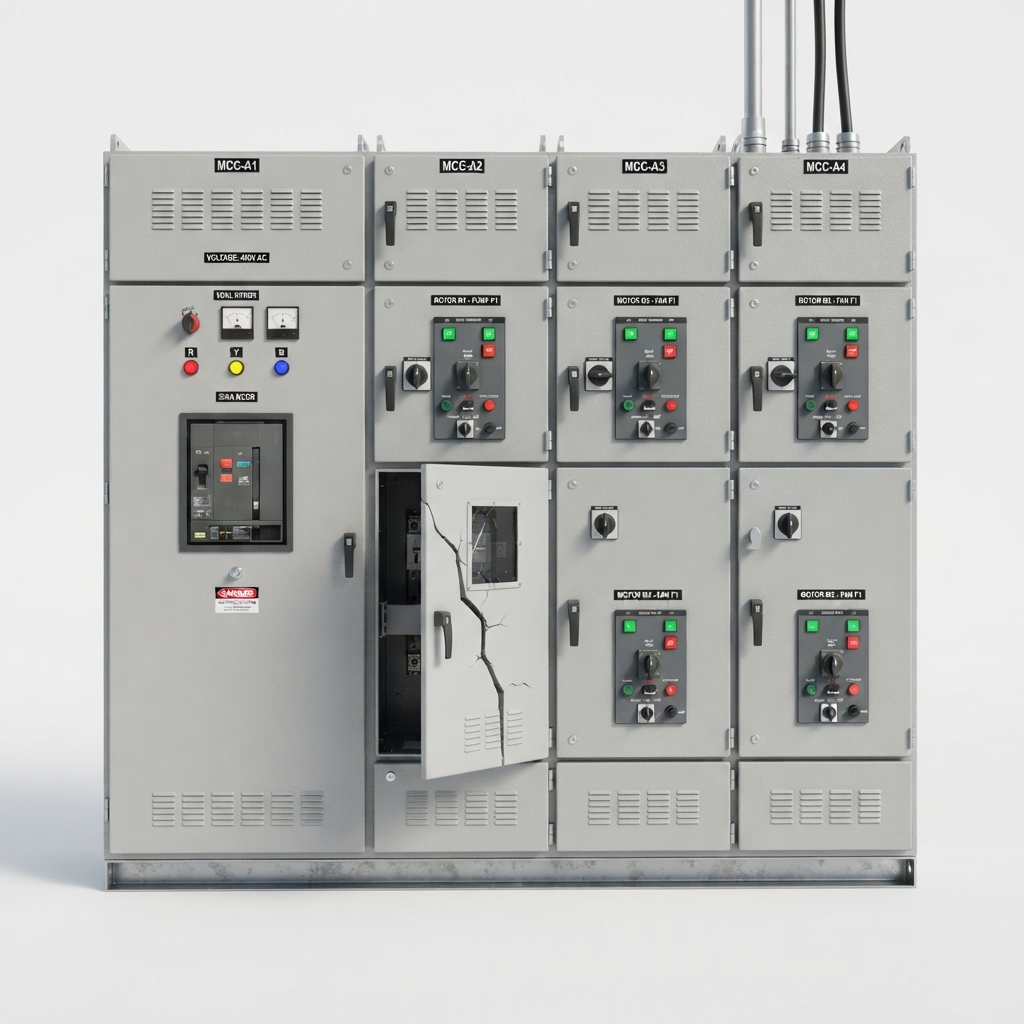

Motor Control Panel (MCC)

Type: Drawer/Fixed
Starter: DOL/Star-Delta
Standard: IS 8623

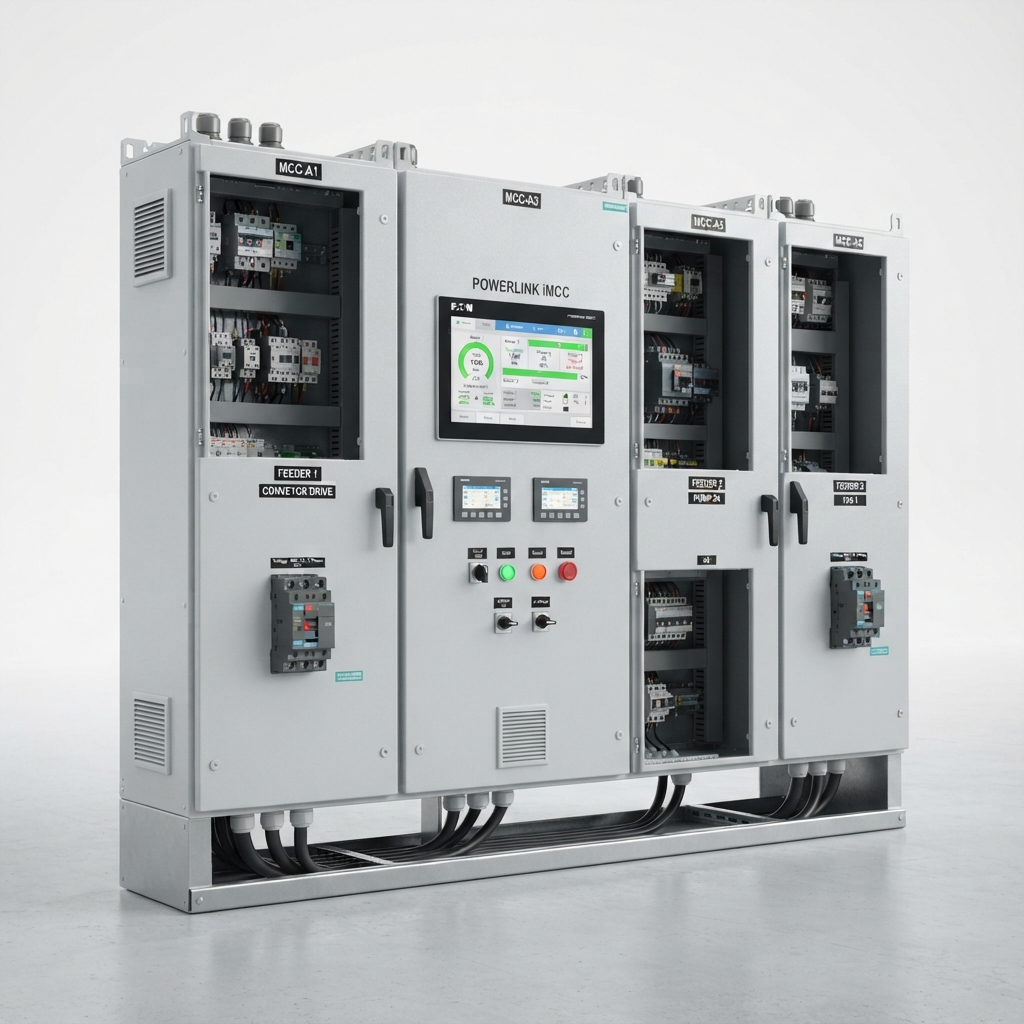

Intelligent Motor Control Center
04 / 27

Intelligent Motor Control Center

Protocol: Modbus/Profibus
Diagnostics: Real-time
Control: Smart Overloads

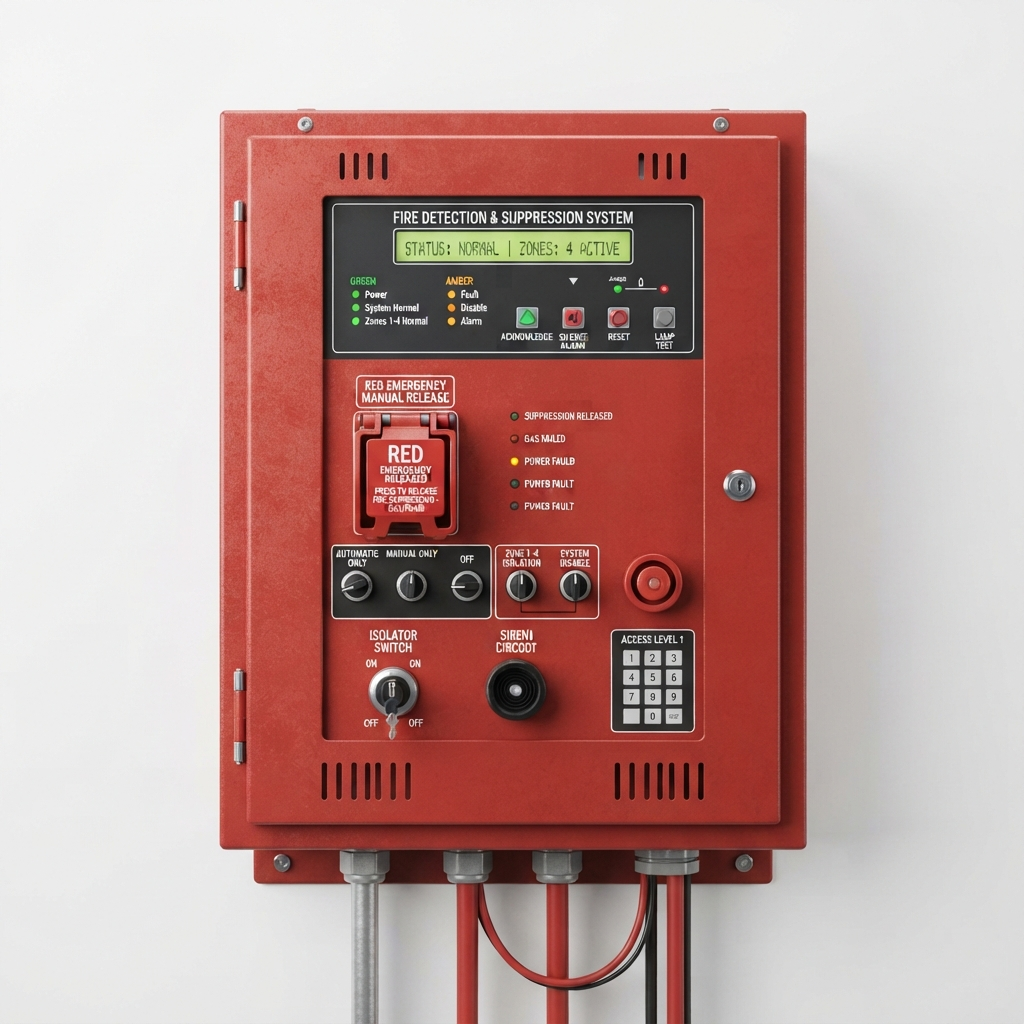

Fire Fighting Panel
05 / 27

Fire Fighting Panel

Operation: Auto/Manual
Enclosure: Red (RAL 3000)
Dual Source: Mains & DG

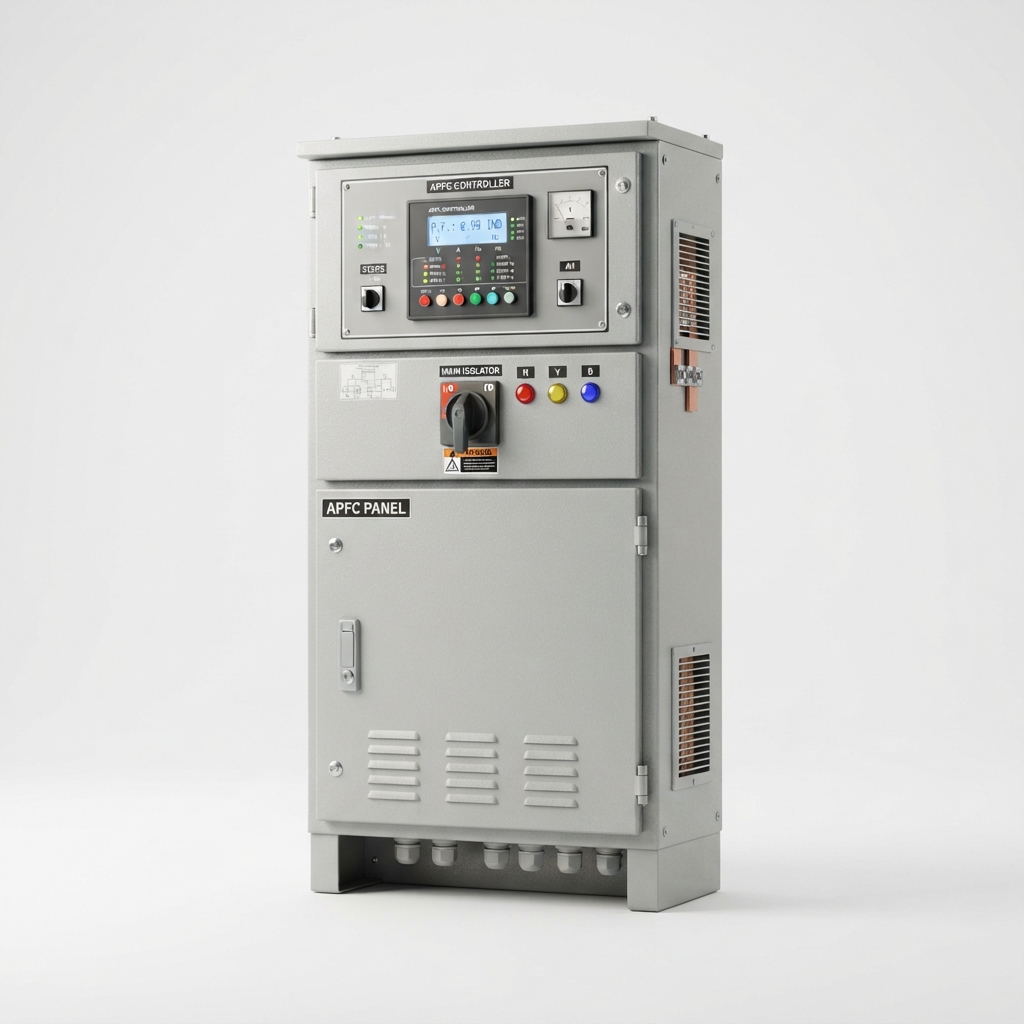

APFC Panel (Power Factor Correction Panel)
06 / 27

APFC Panel (Power Factor Correction Panel)

Control: Microprocessor APFC
Stage: 4/6/8/12/16 Stage
Target PF: 0.99 Lagging

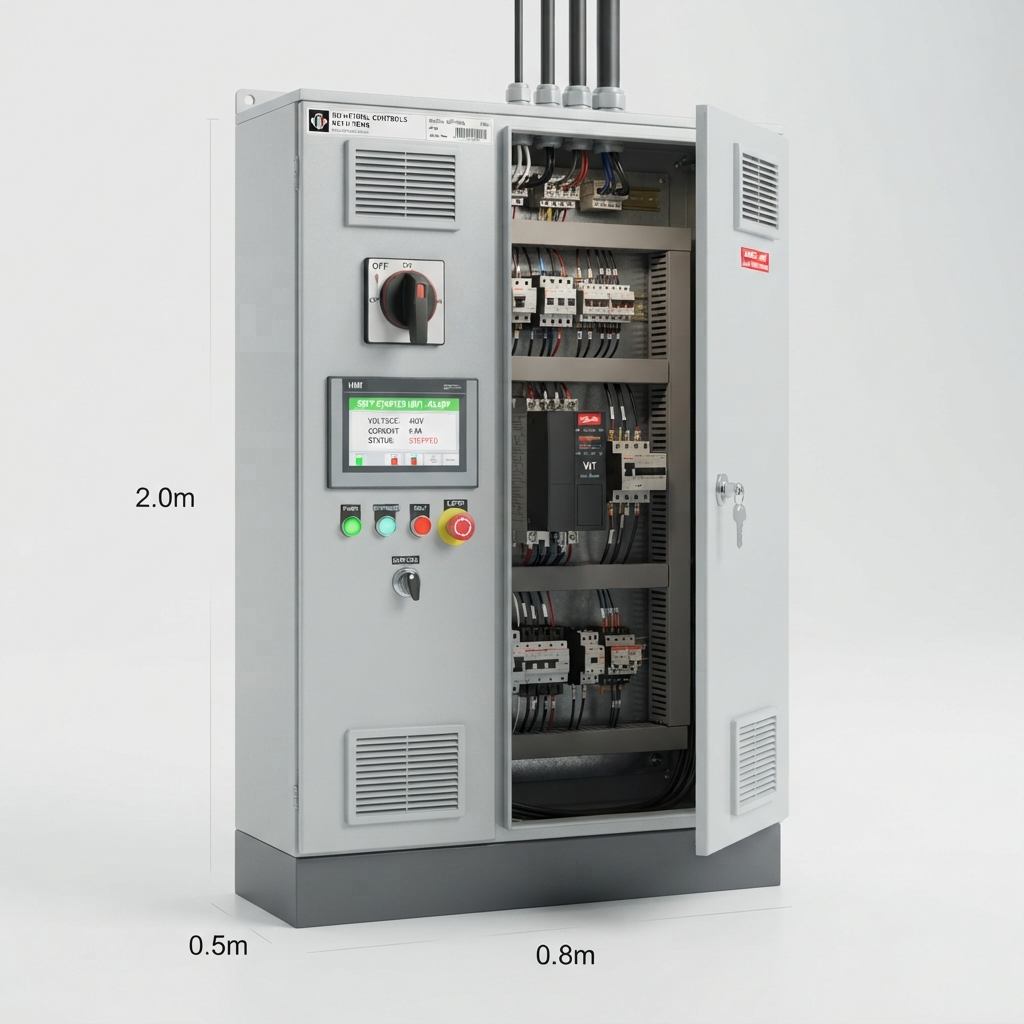

Soft Starter Panel / Drive Control Panel
07 / 27

Soft Starter Panel / Drive Control Panel

Control: VFD/Soft Starter
Cooling: Forced Air Fan
Efficiency: > 98%

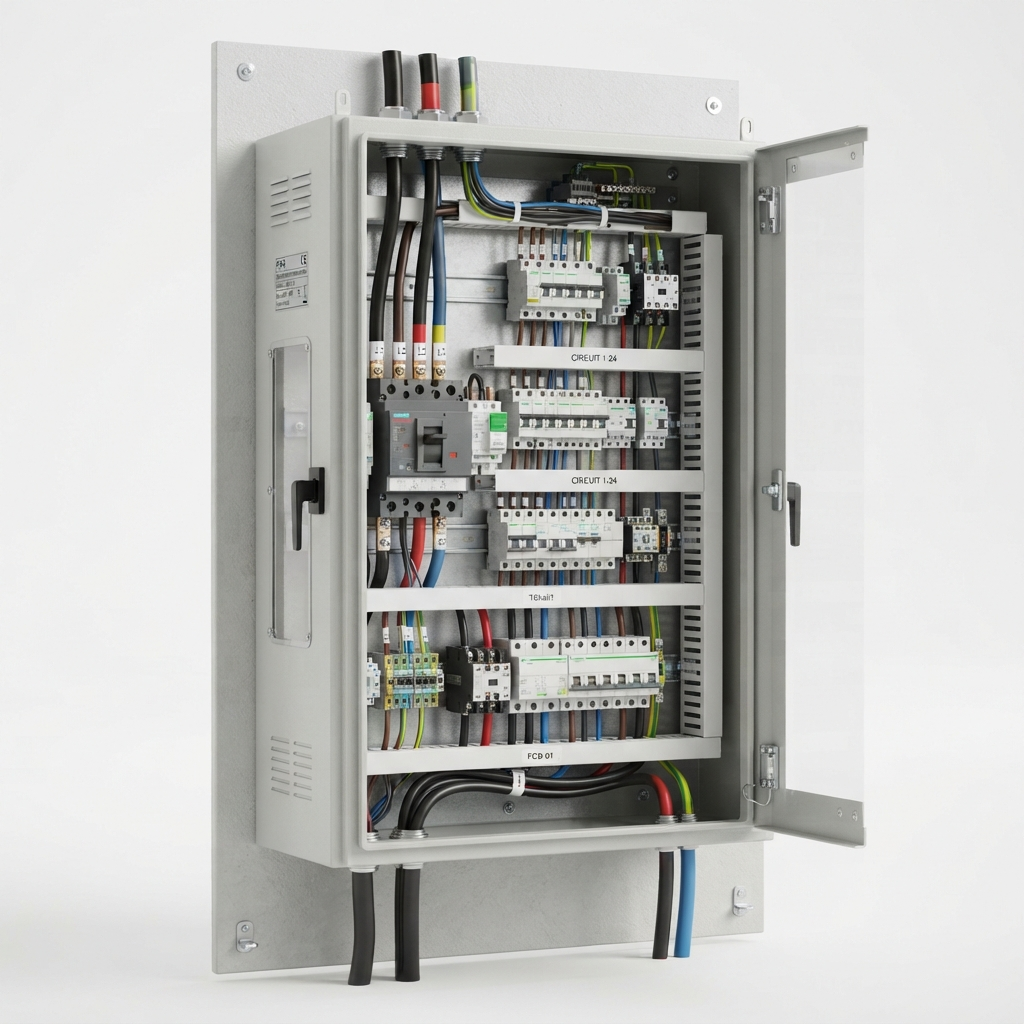

Power Distribution Board (PDB)
08 / 27

Power Distribution Board (PDB)

Rating: Up to 1600A
Breaking Cap: Up to 50kA
Type: Wall/Floor Mount

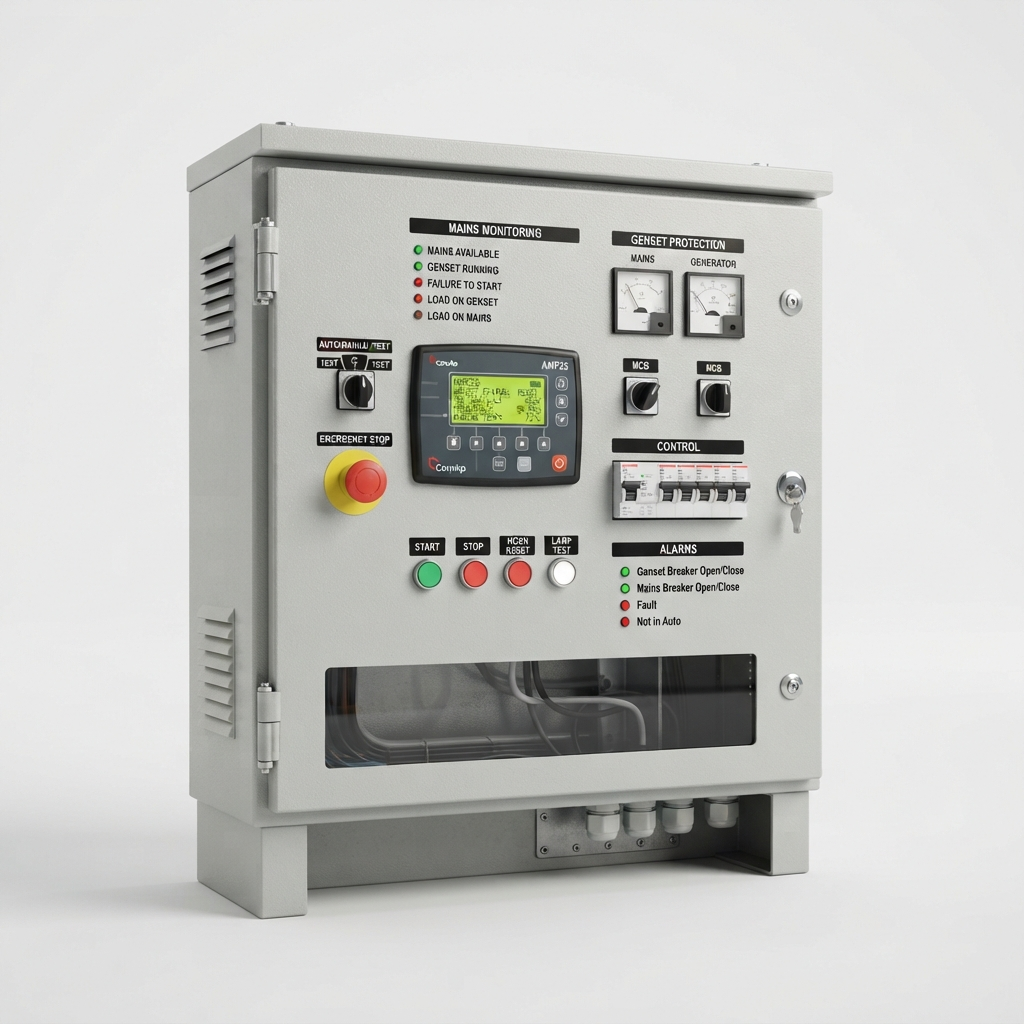

AMF Control Panel
09 / 27

AMF Control Panel

Sensing: Auto Mains Failure
Transition: Open/Closed
Controller: Smartgen/Deepsea

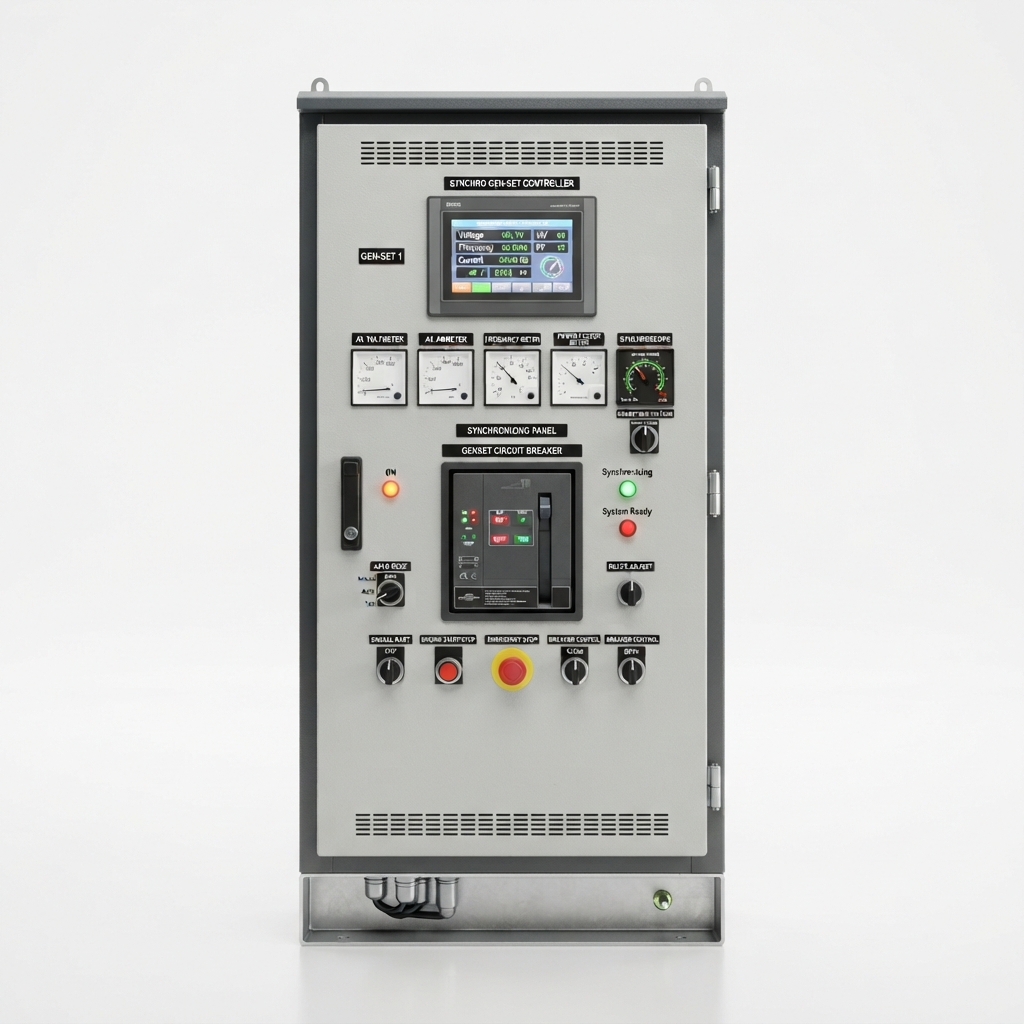

DG Synchronizing Panel
10 / 27

DG Synchronizing Panel

Sync Type: Auto-sharing
PLC: Siemens/Schneider
Protection: Reverse Power

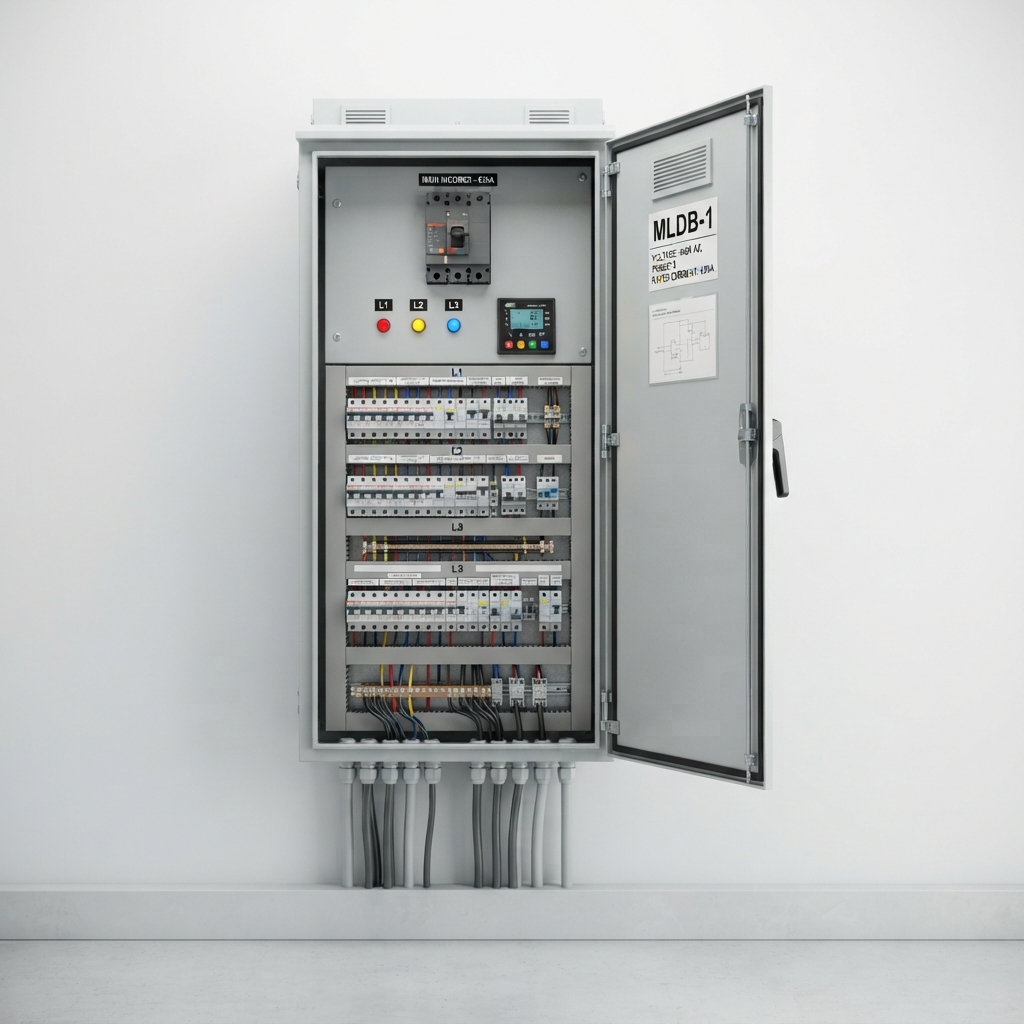

Main Lighting Distribution Board (MLDB)
11 / 27

Main Lighting Distribution Board (MLDB)

Breakers: MCCB Main + MCB Out
Phase: 3 Phase, 4 Wire
Standard: IS 13032

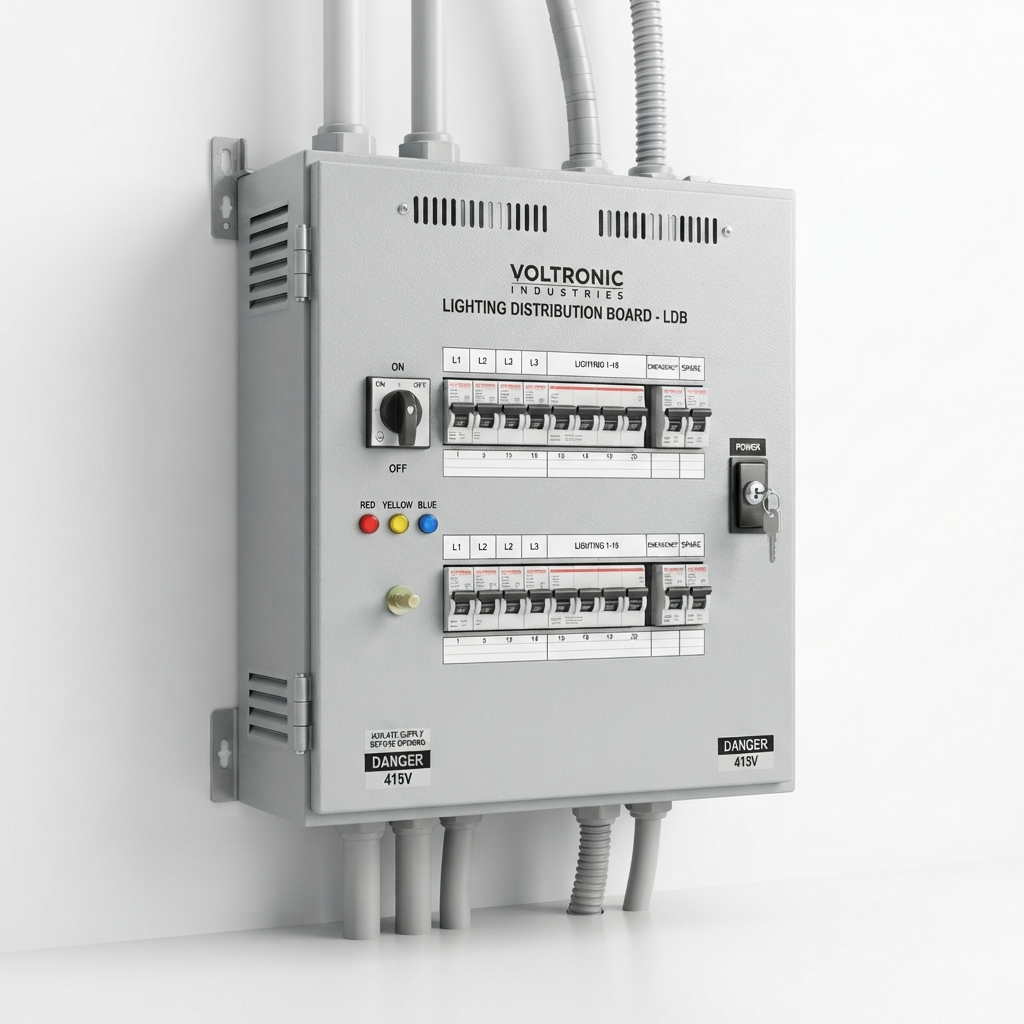

Lighting Distribution Board (LDB)
12 / 27

Lighting Distribution Board (LDB)

Breakers: MCB / ELCB
Type: Flush/Surface Mount
Rating: Up to 250A
Sub Lighting Distribution Board (SLDB)
13 / 27

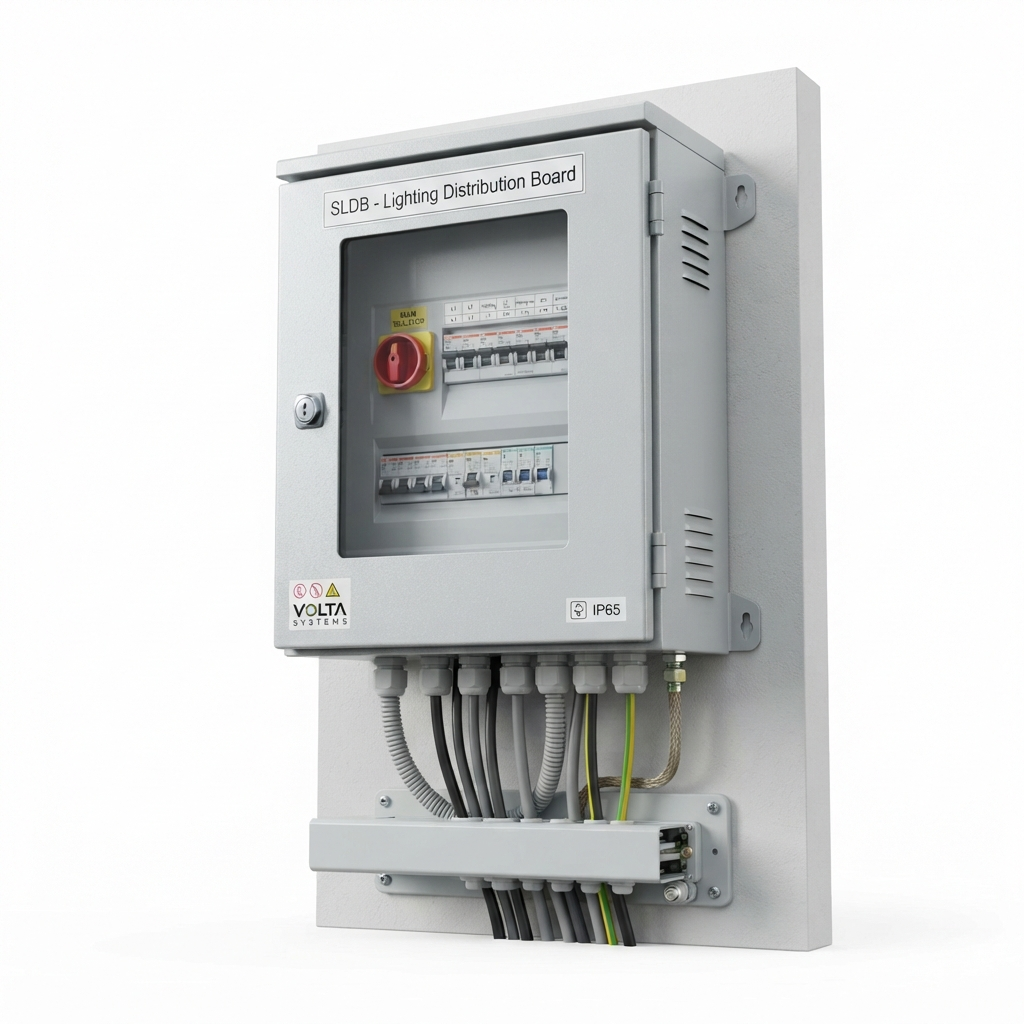

Sub Lighting Distribution Board (SLDB)

Breakers: SPN / TPN MCB
Mounting: Wall Mounted
Applications: Small Offices

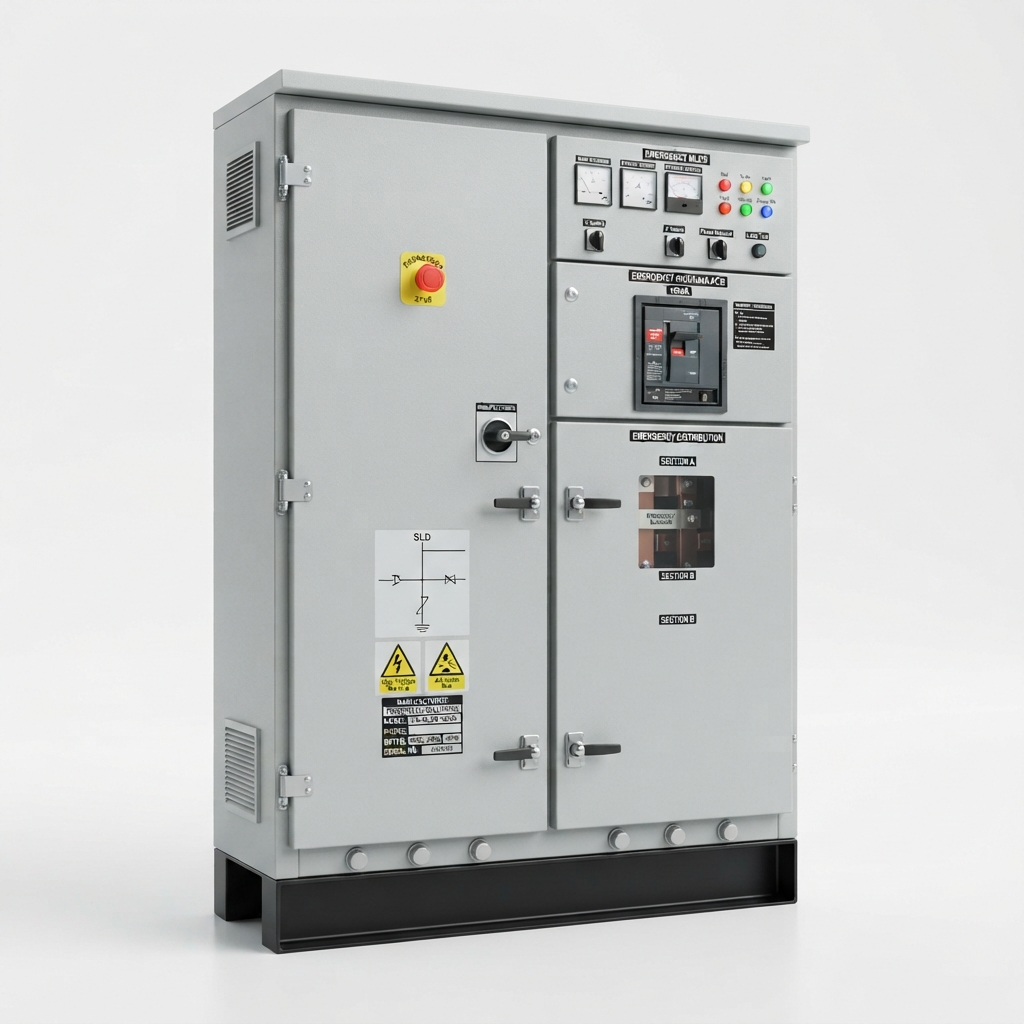

Emergency PDB
14 / 27

Emergency PDB

Source: UPS / Solar / DG
Critical Loads: Hospital/IT
IP Rating: IP54
Emergency MLDB
15 / 27

Emergency MLDB

Source: Critical Mains
Safety: Fire-retardant paint
Standard: IEC 60529

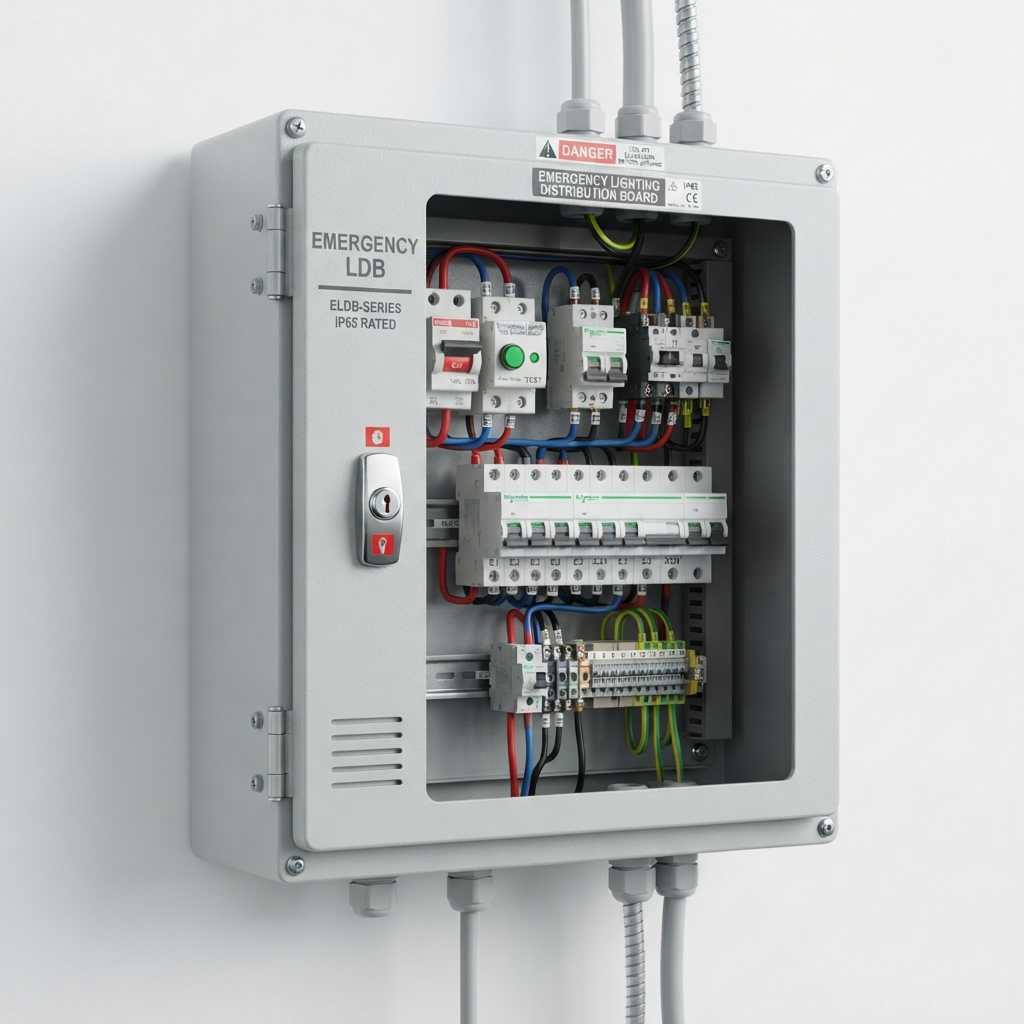

Emergency LDB
16 / 27

Emergency LDB

Source: Emergency Backup
Type: Metal Enclosure
IP Rating: IP42

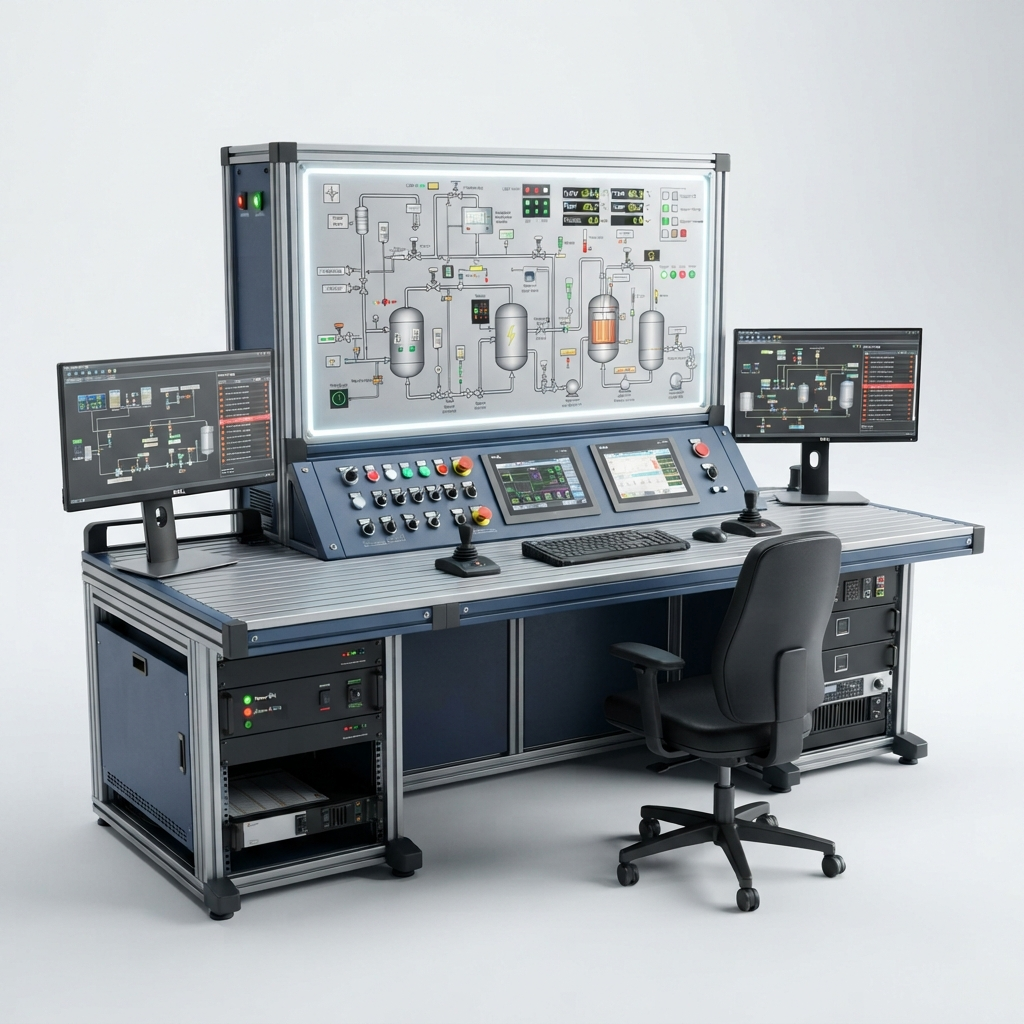

Control Desk with Mimic Diagram
17 / 27

Control Desk with Mimic Diagram

Interface: LED Mimic / HMI
Ergonomics: Sloped Desk
Material: Cold Rolled Steel

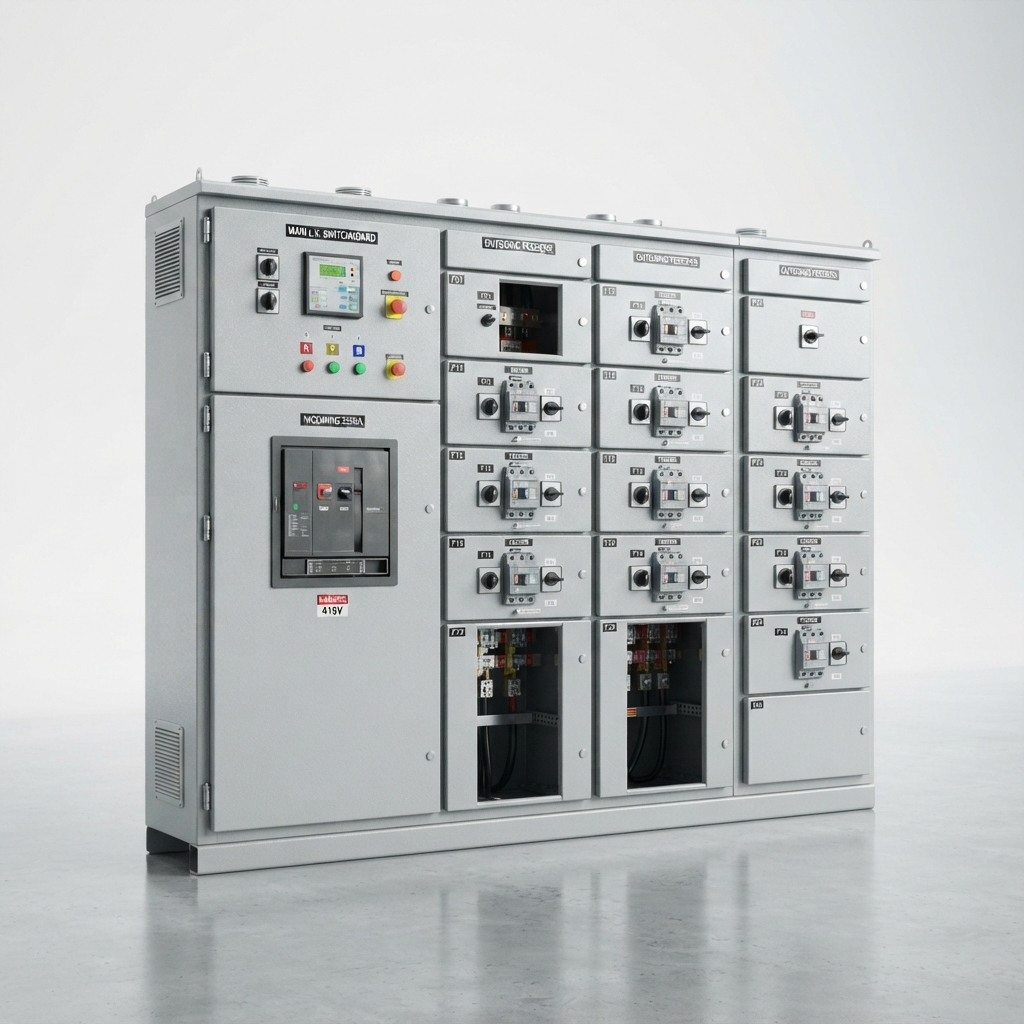

Main Switch Board
18 / 27

Main Switch Board

Rating: Up to 4000A
Access: Front/Rear
Standard: IS 8623

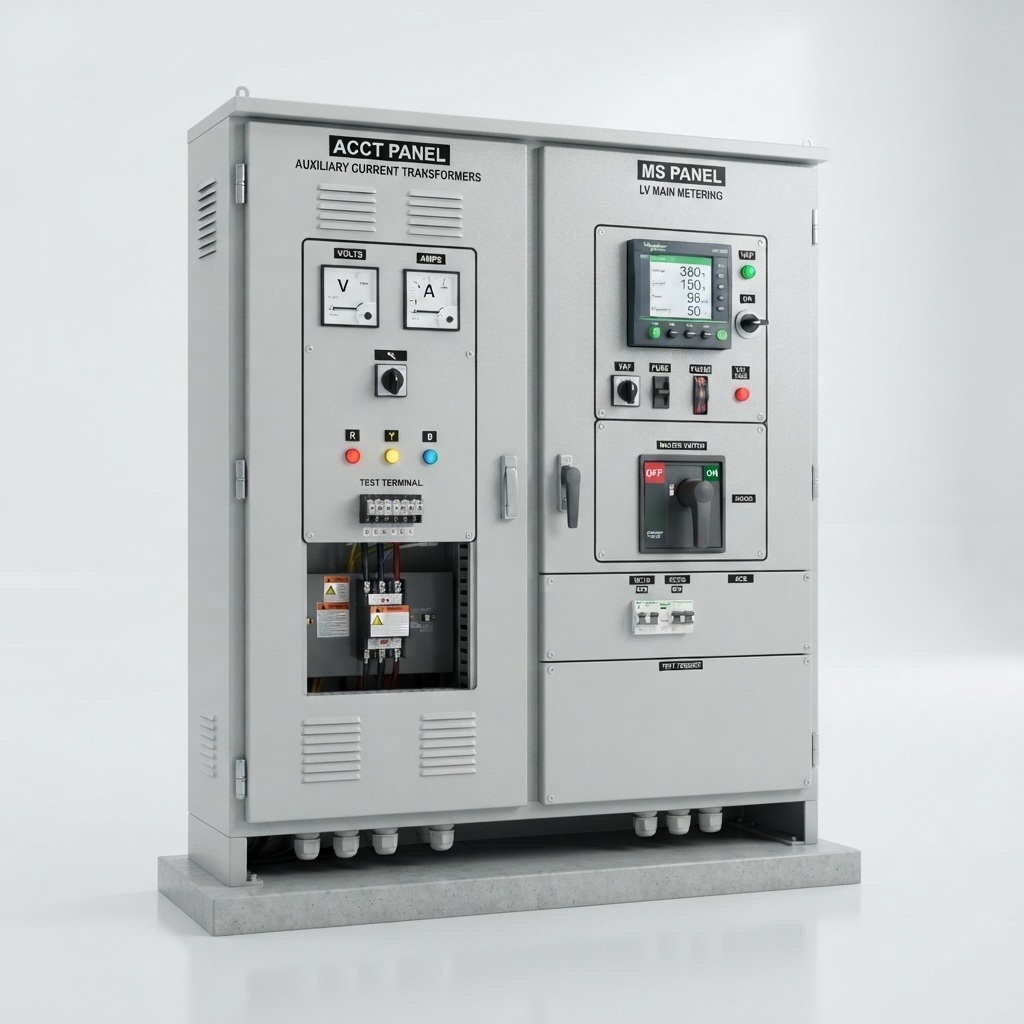

Metering Panel with ACCT & MS Panel
19 / 27

Metering Panel with ACCT & MS Panel

Accuracy: Class 0.5s/0.2s
Meters: Multifunction Digital
CT Ratio: As per utility

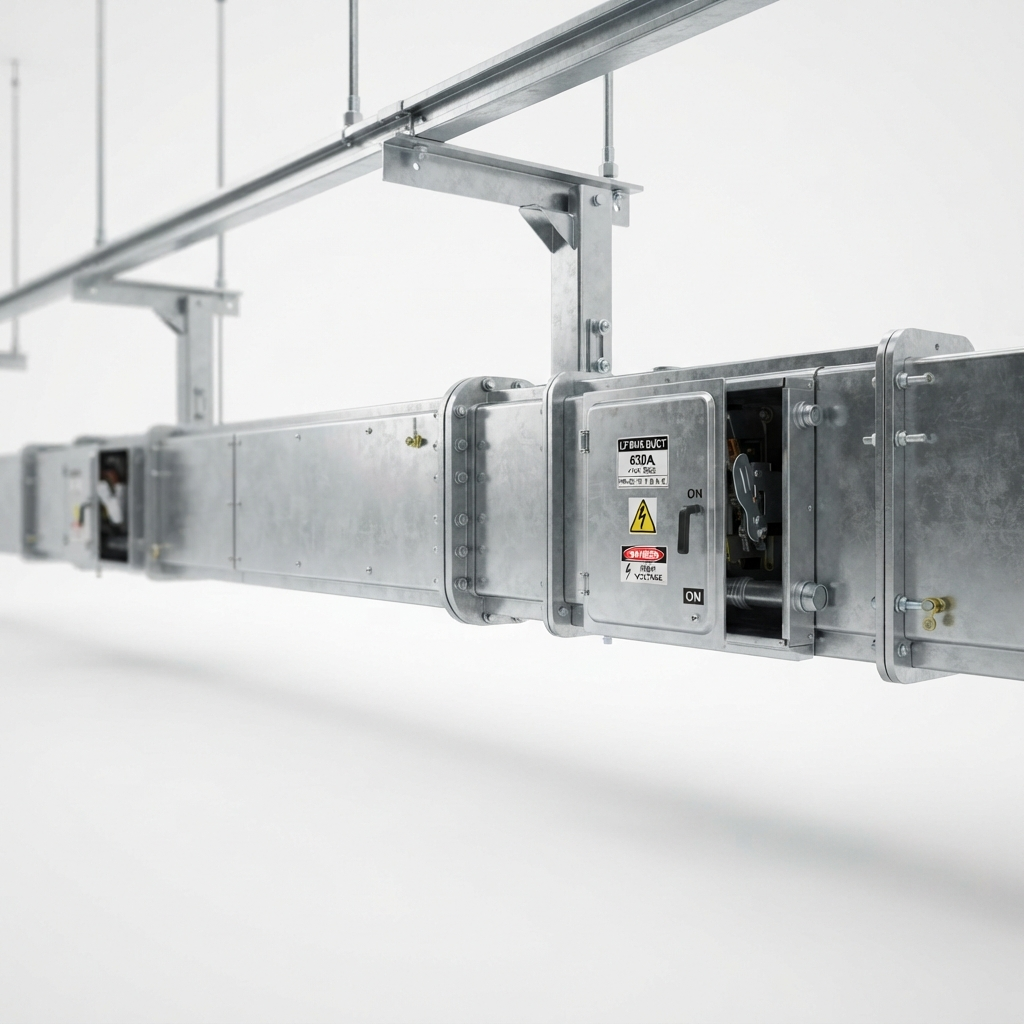

LT Bus Duct
20 / 27

LT Bus Duct

Conductor: Al/Cu Sandwich
Rating: Up to 6300A
Voltage: 1000V Insulated

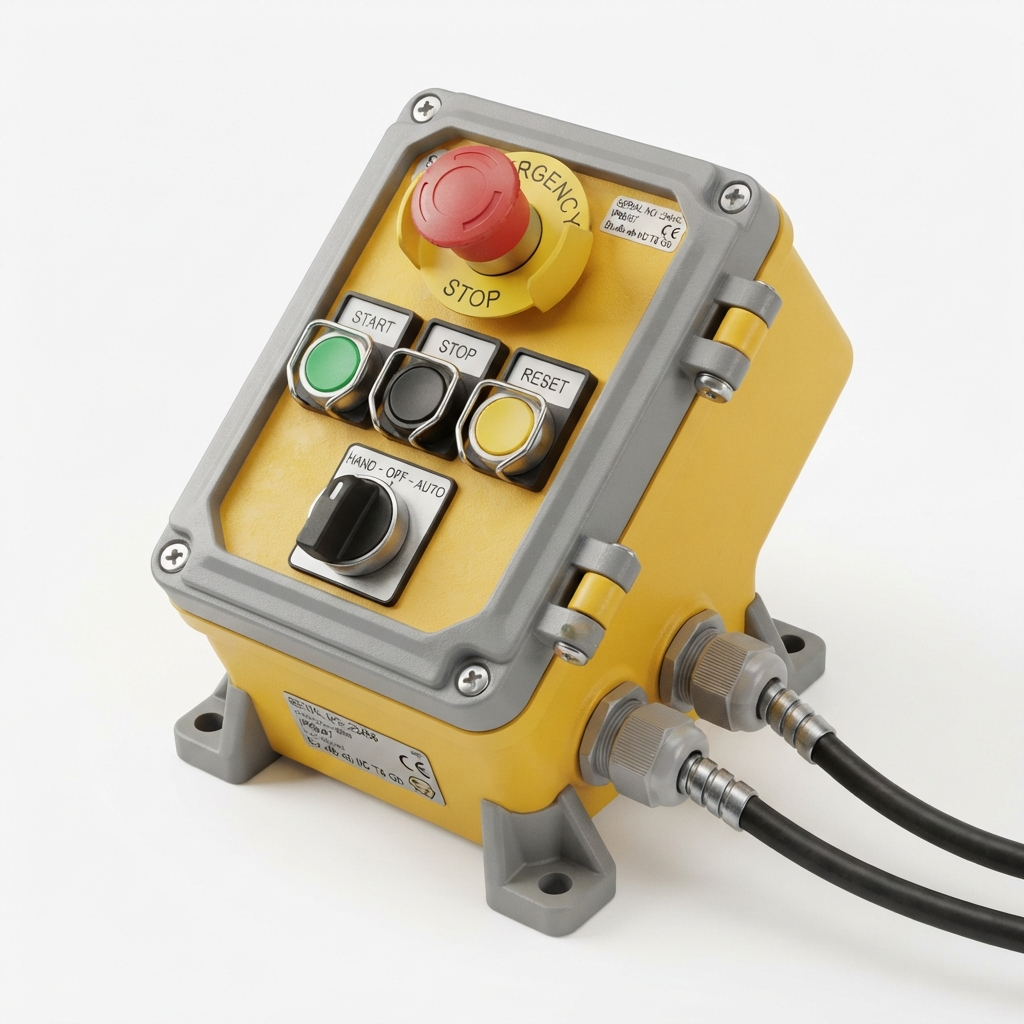

Local Push Button Control Station
21 / 27

Local Push Button Control Station

Buttons: Start/Stop/Emergency
Enclosure: Cast Al/Polycarbonate
IP Rating: IP65
Junction Box
22 / 27

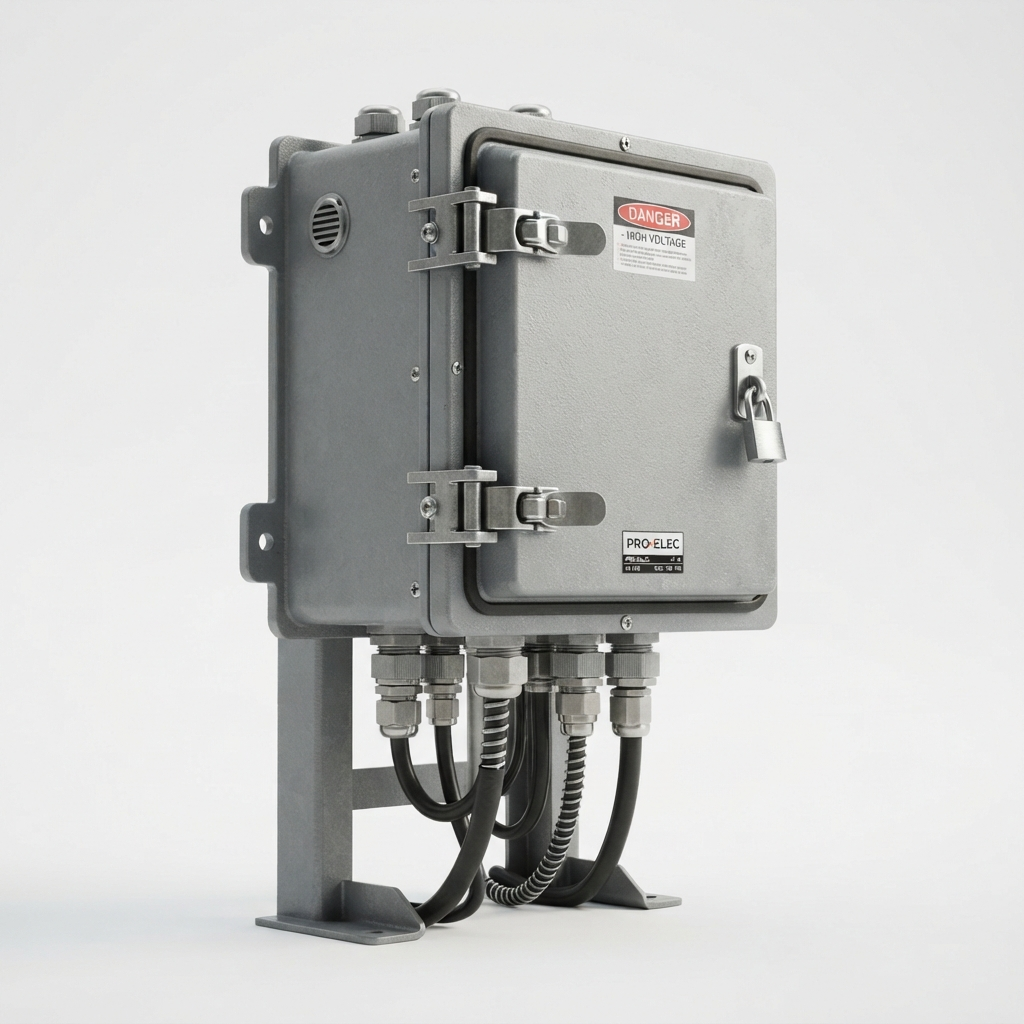

Junction Box

Terminals: Din-rail mounted
Material: MS / SS304 / SS316
Cable Entry: Bottom/Top
Control & Relay Panel
23 / 27

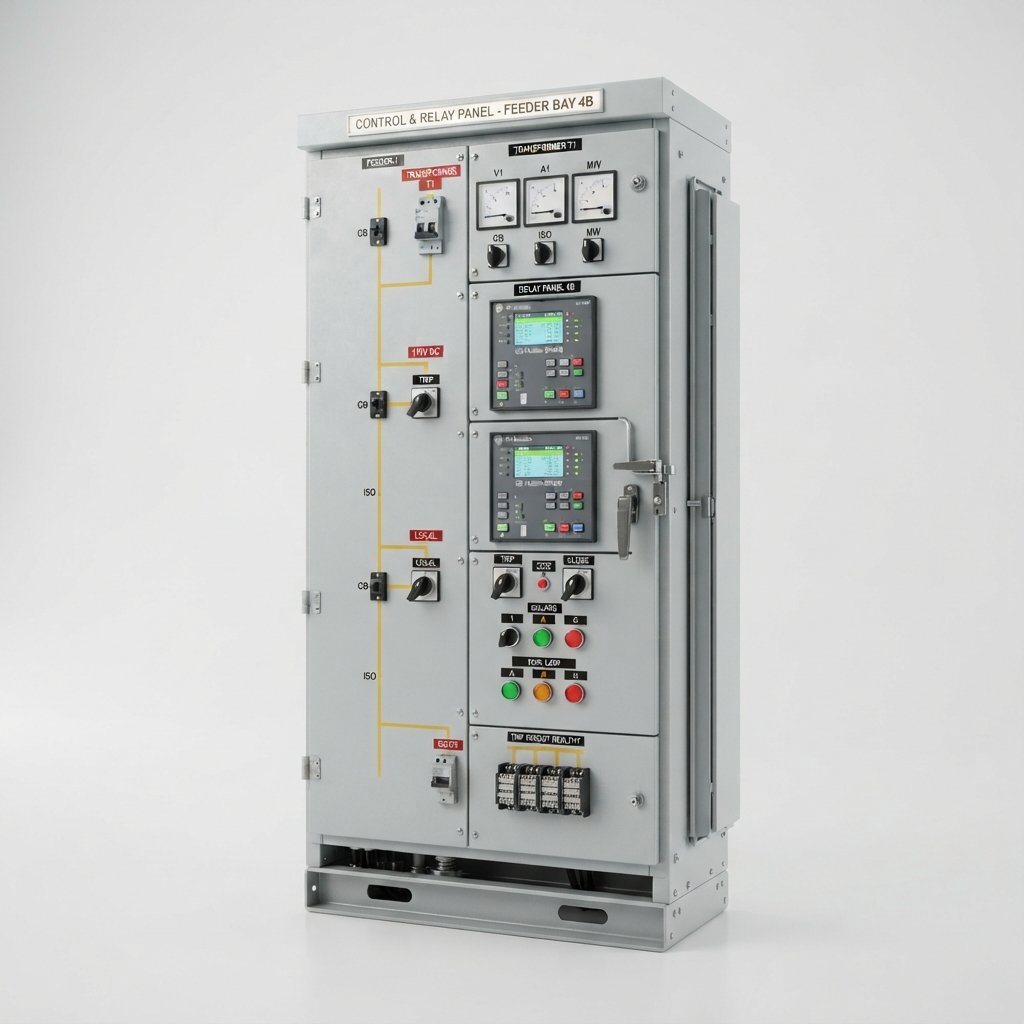

Control & Relay Panel

Relays: Numerical/Electromech
Annunciator: Multi-window LED
Communication: IEC 61850

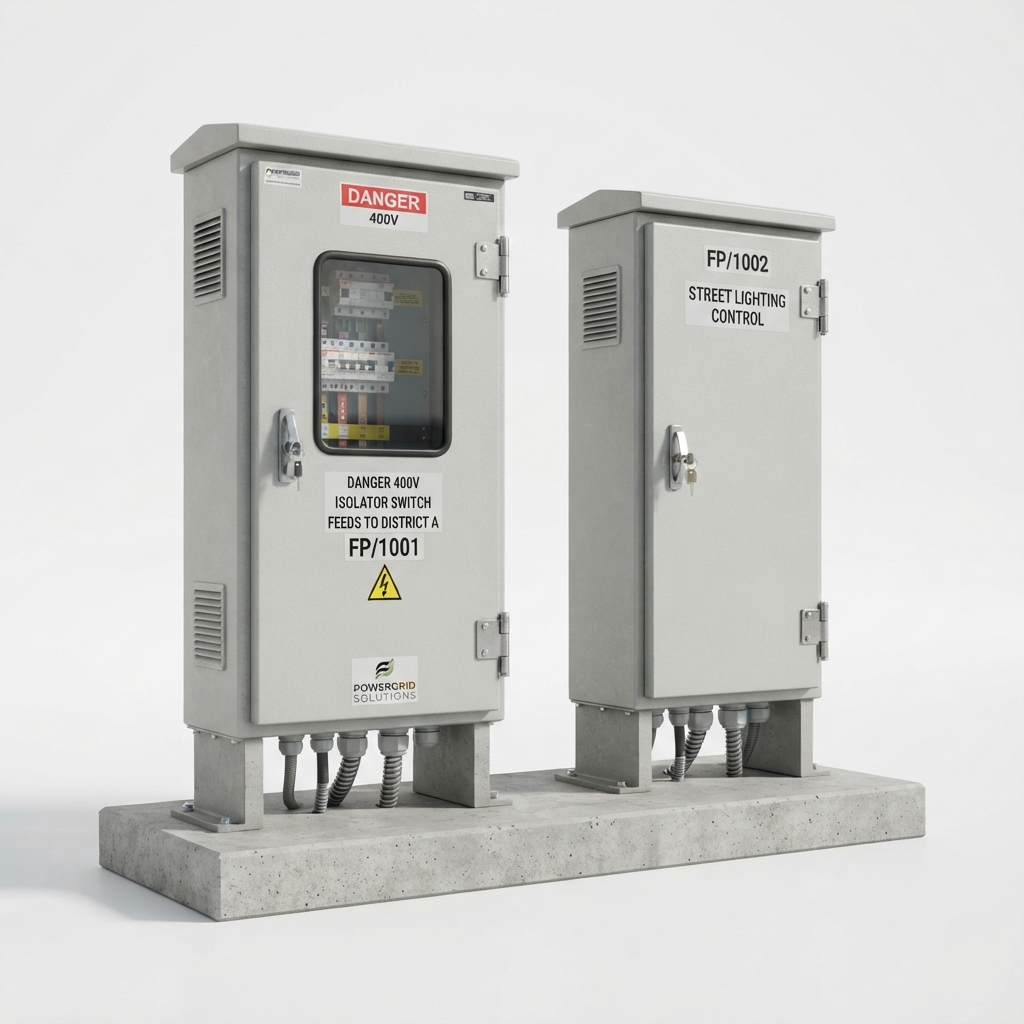

Feeder Pillars
24 / 27

Feeder Pillars

Mounting: Outdoor Plinth
Canopy: Double Sloped
Locking: 3-point handle
Instrument Panel
25 / 27

Instrument Panel

Equipment: Transducers/Meters
Wiring: Screened cables
Aesthetics: Glass front door
Switch Socket Outlet
26 / 27

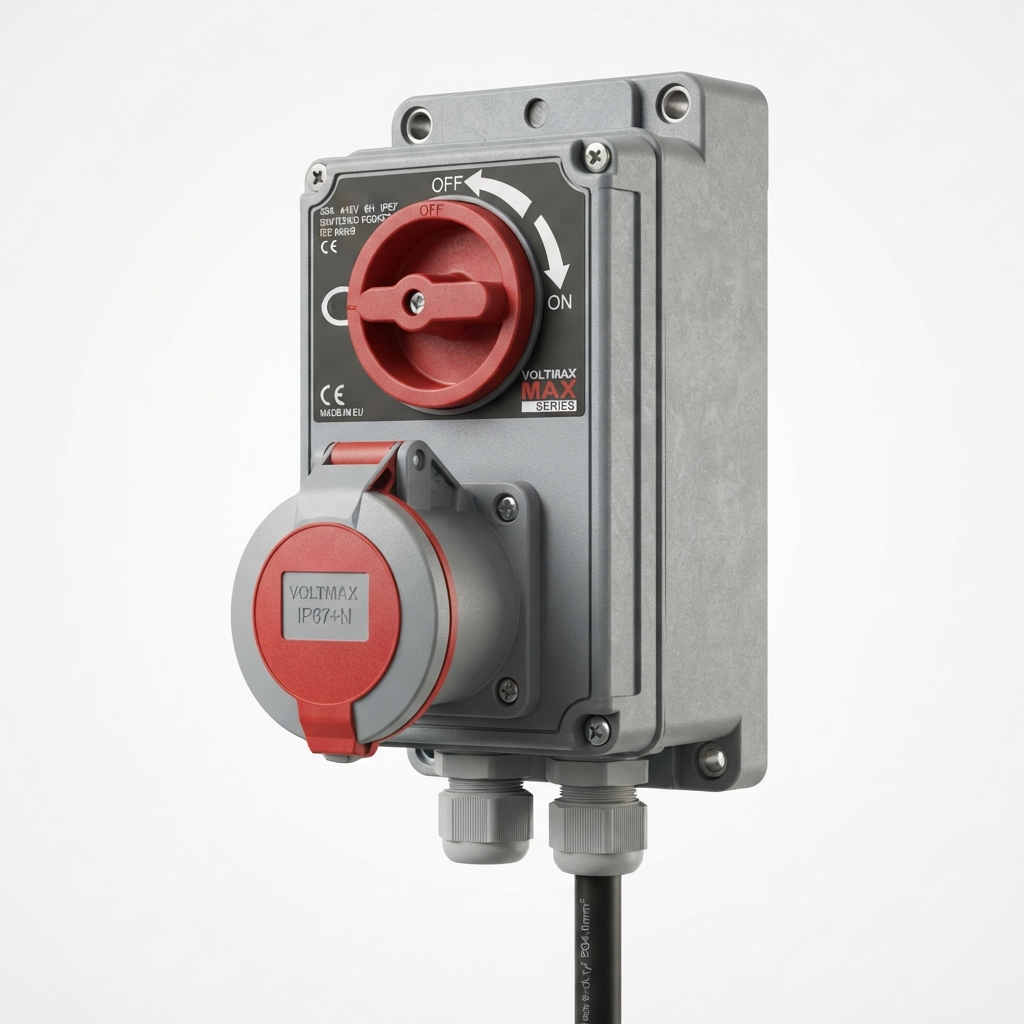

Switch Socket Outlet

Rating: 16A / 32A / 63A
Interlock: Mechanical rotary
IP Rating: IP54/IP67

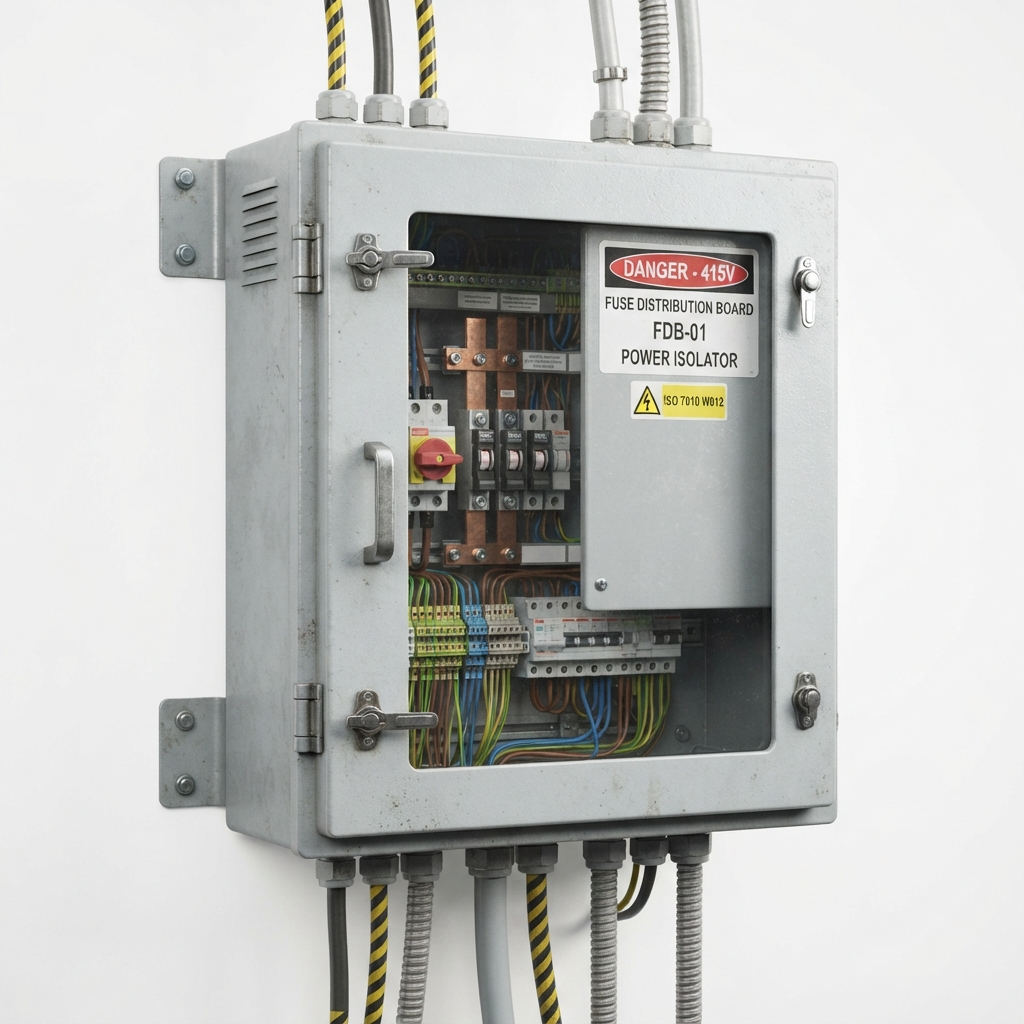

Fuse Distribution Board
27 / 27

Fuse Distribution Board

Fuse Type: HRC Fuse link
Rating: Up to 630A
Safety: Shrouded terminals

HT Electrical Panels

Core Component Partner of Schneider Electric

Riddhi Siddhi Electrical is the Core Component Partner of Schneider Electric for the HT range. The final Medium Voltage Switchboard is designed, manufactured and tested with the help of Schneider Electric MV Components.

Medium Voltage Components

HVX
Easypact EXE
Evolis range of vacuum circuit breakers
LF and SF range of SF6 circuit breakers
CBX/CVX range of Vacuum Contactors

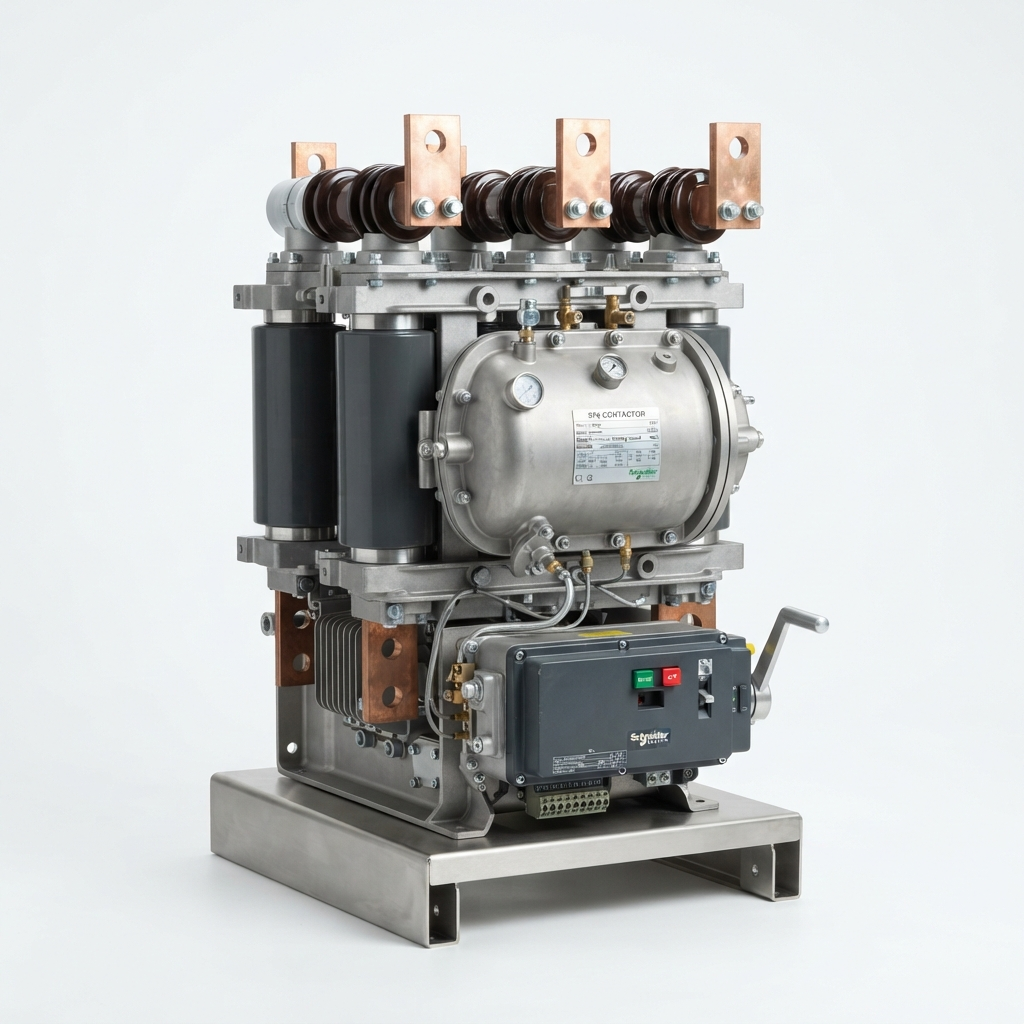

Rollarc range of SF6 Contactor
12, 24 & 36 KV Load break switches
PIX basic kit / Power Module
Relays — Sepam, MICOM, Vamp etc.

HT Medium Voltage Switchgear & Controls

High-voltage breaker mechanisms and protective relay modules designed with Schneider Electric

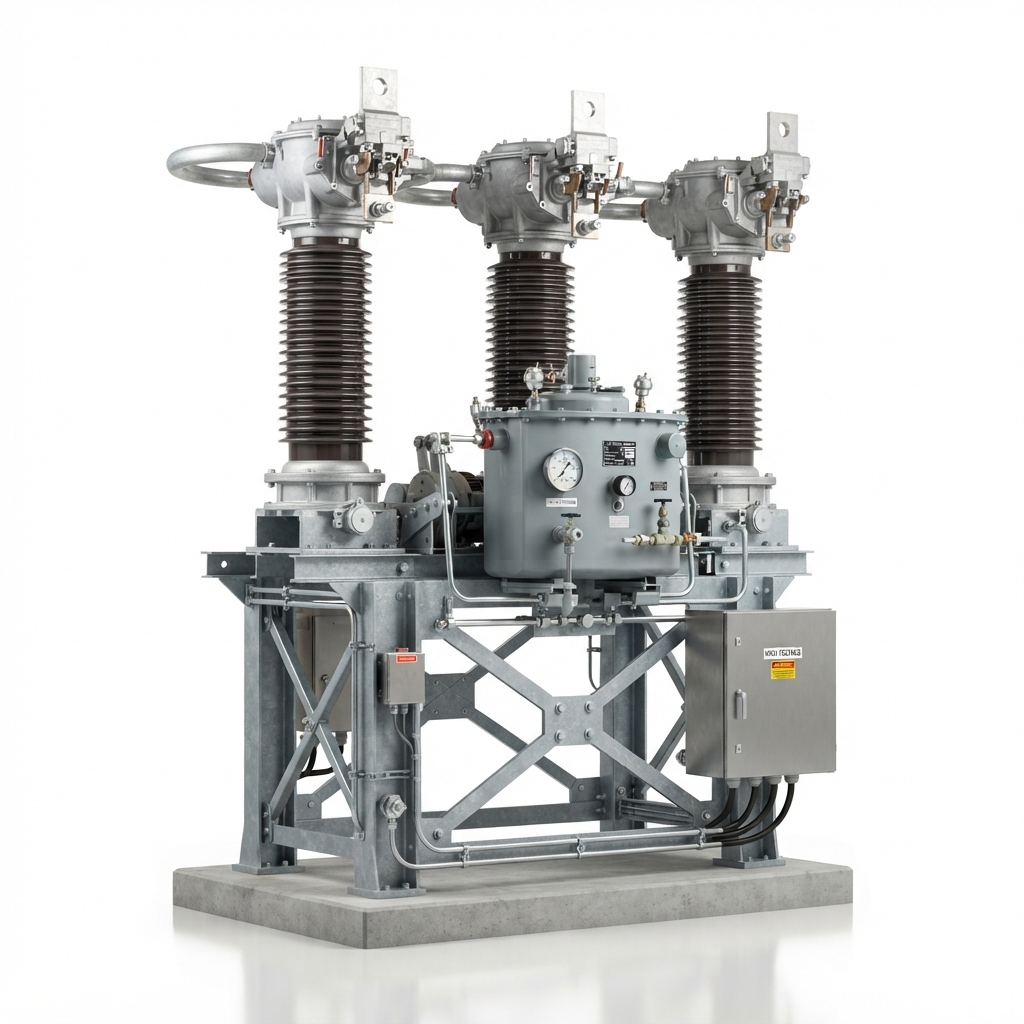

HVX
01 / 09

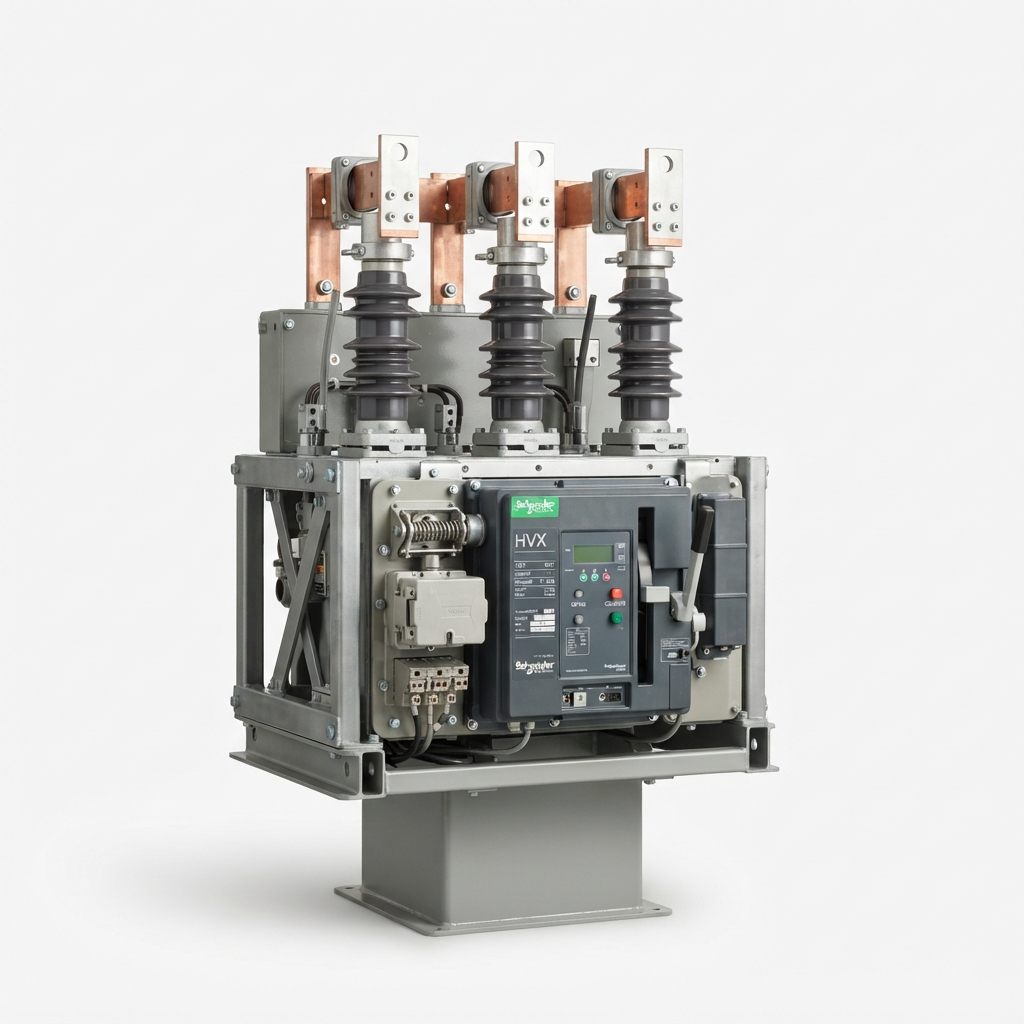

HVX

Rating: Up to 36kV
Type: Vacuum Circuit Breaker
Brand: Schneider Electric Partner

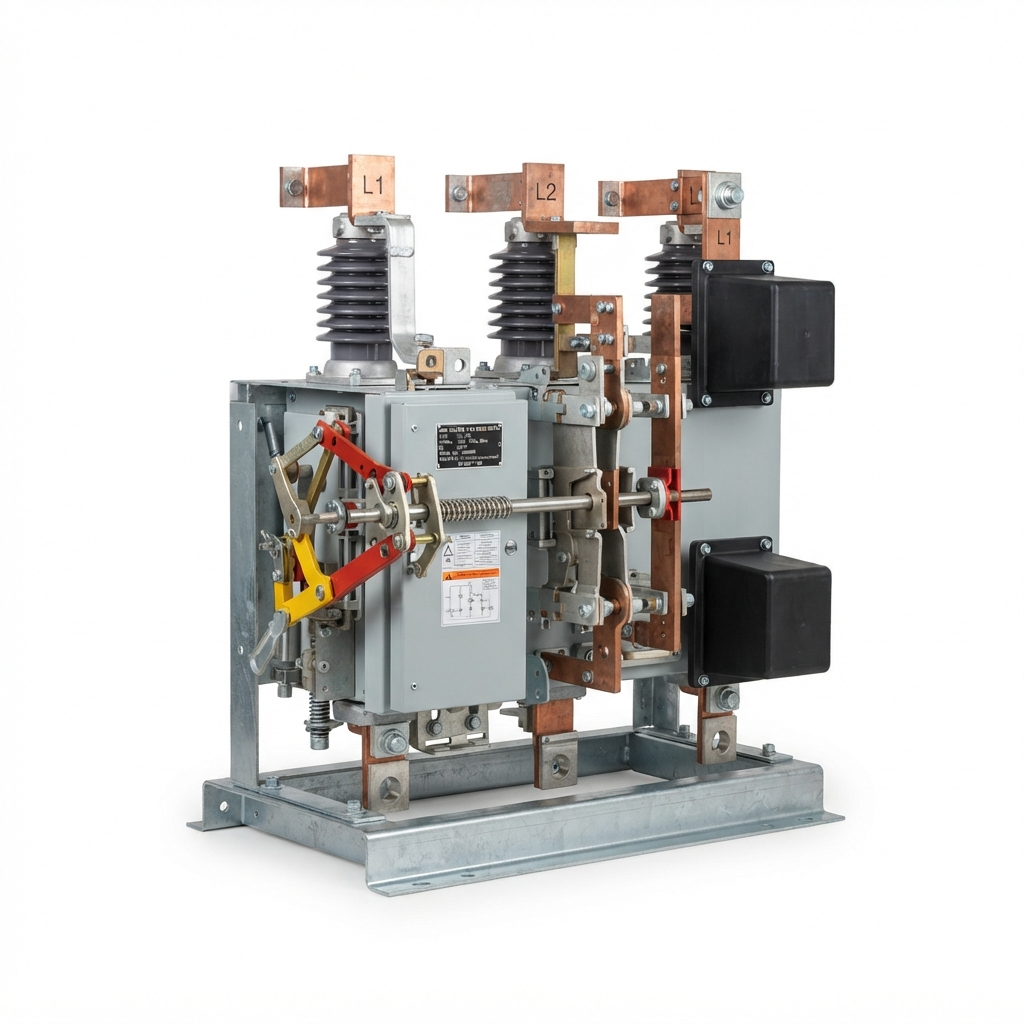

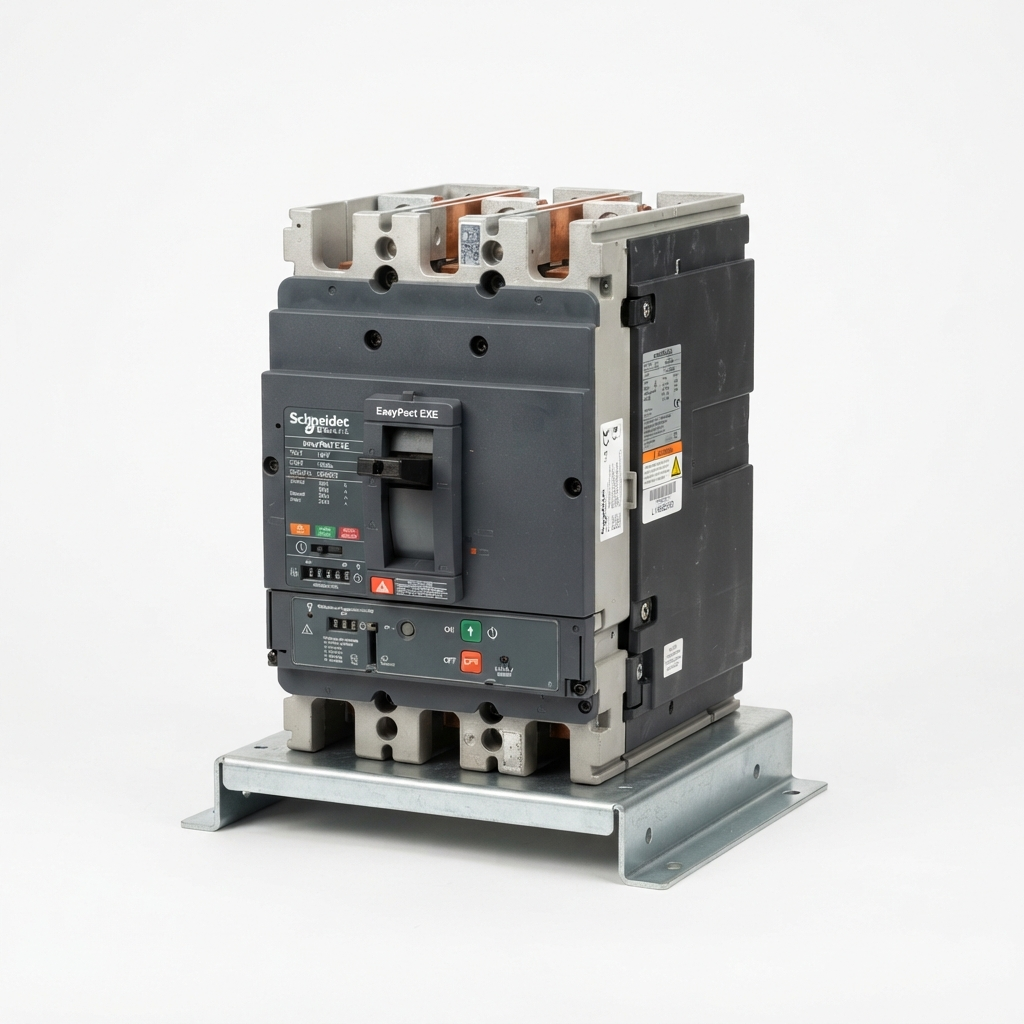

Easypact EXE
02 / 09

Easypact EXE

Rating: 12kV / 17.5kV
Breaking Cap: Up to 31.5kA
Duty Cycle: O-0.3s-CO-15s-CO

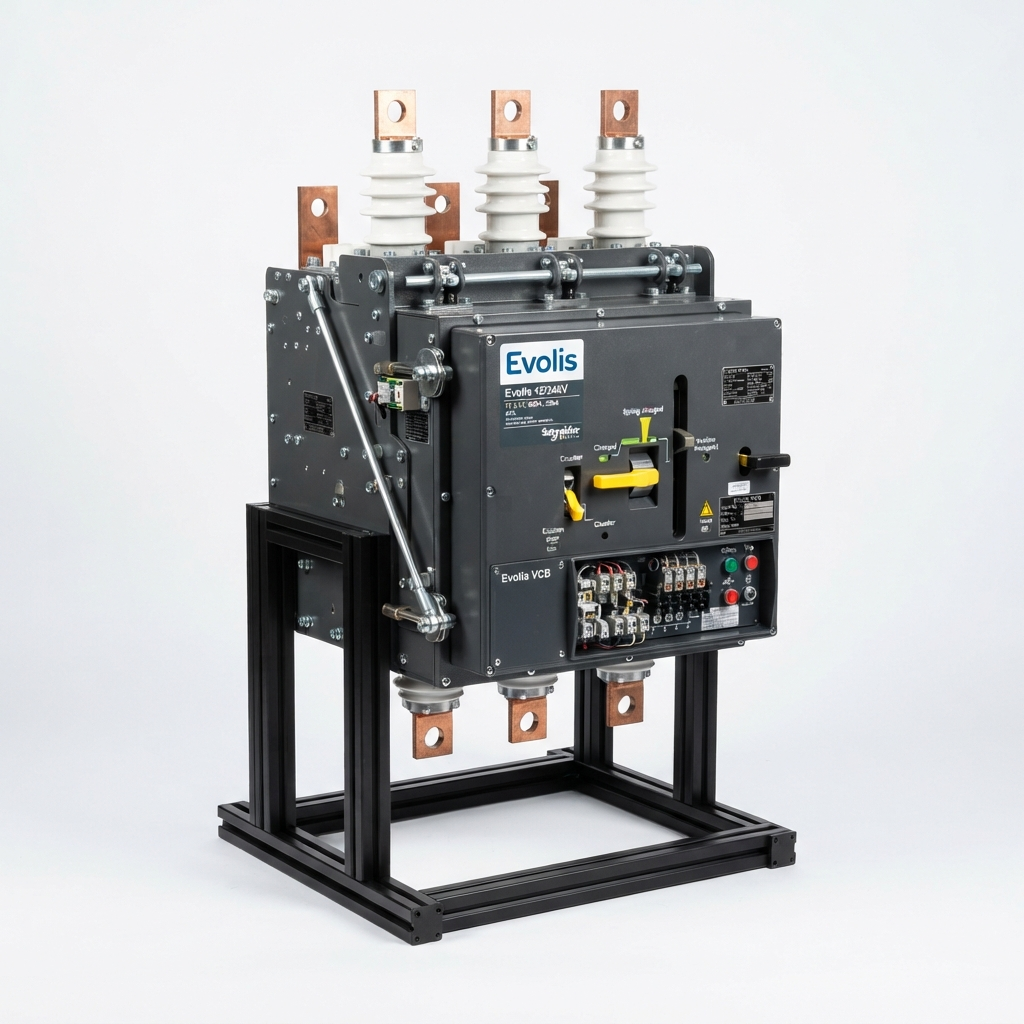

Evolis range of vacuum circuit breakers
03 / 09

Evolis range of vacuum circuit breakers

Voltage: 7.2kV to 24kV
Rating: Up to 2500A
Mechanism: Magnetic / Spring
LF and SF range of SF6 circuit breakers
04 / 09

LF and SF range of SF6 circuit breakers

Medium: SF6 Gas Insulated
Voltage: Up to 36kV
Maintenance: Sealed-for-life
CBX/CVX range of Vacuum Contactors
05 / 09

CBX/CVX range of Vacuum Contactors

Voltage: Up to 12kV
Operations: 1 Million mechanical
Fuses: Built-in type
Rollarc range of SF6 Contactor
06 / 09

Rollarc range of SF6 Contactor

Voltage: 7.2kV / 12kV
Frequency: Up to 300 ops/hour
Standard: IEC 60470
12, 24 & 36 KV Load break switches
07 / 09

12, 24 & 36 KV Load break switches

Voltage: 12kV to 36kV
Type: LBS Fuse combination
Standard: IEC 62271-105
PIX basic kit / Power Module
08 / 09

PIX basic kit / Power Module

Safety: Internal Arc Class IAC
Design: Metal-clad switchboard
Standard: IEC 62271-200

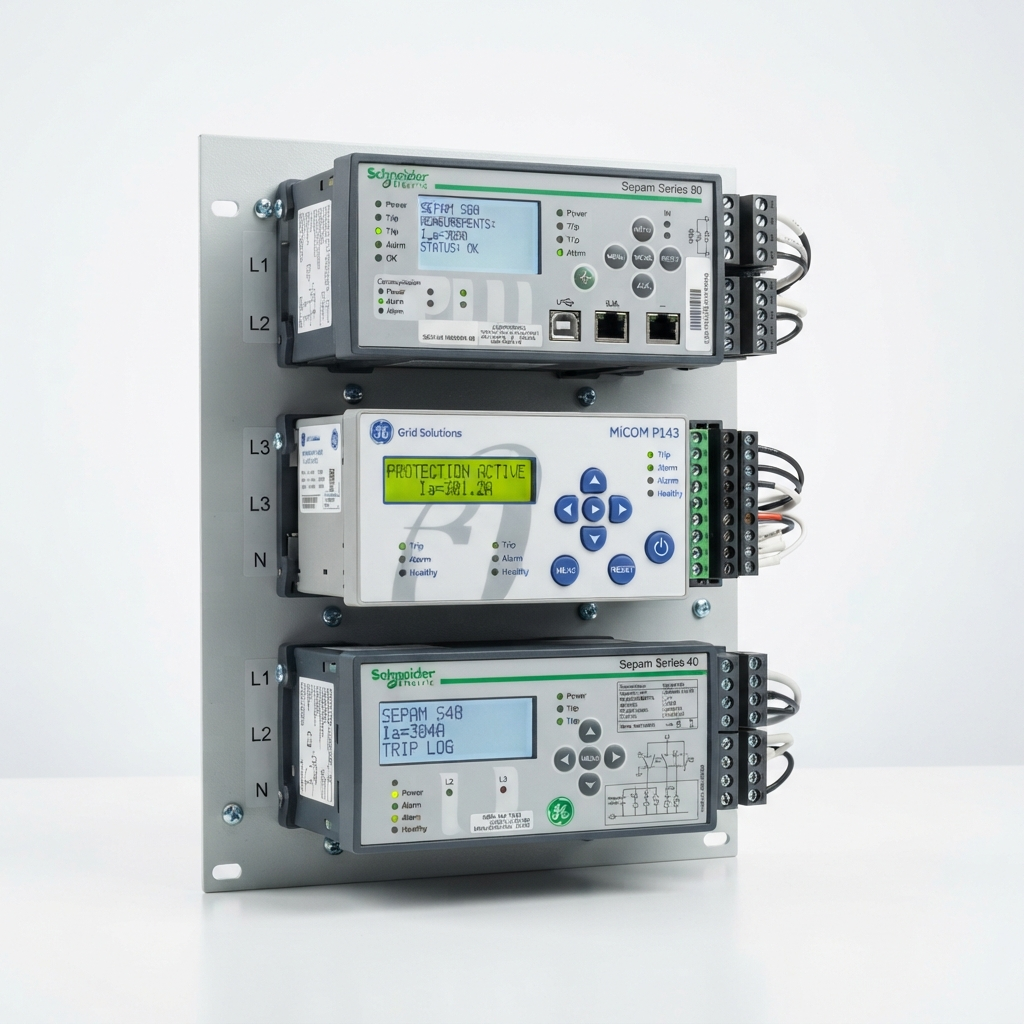

Relays — Sepam, MICOM, Vamp etc.
09 / 09

Relays — Sepam, MICOM, Vamp etc.

Type: Numerical Protection
Communication: Modbus/IEC61850
Brands: Schneider Electric

Servo Voltage Stabilizers

Stabilizes voltage and counters voltage fluctuations

Design

Single Phase Input & Single Phase Output
Balanced Load
Unbalanced Load

Protections

Overload Trip
Over Voltage Trip
Phase Reversal Trip
Single Phase Preventer
Audio-Visual Alarm
Surge & Spike Suppressor

Production Process

Fabrication Process

  • Precision tools and machineries used to cut sheet metals
  • Sheets from reputed brands — Tata, JSW & Century
  • CNC used for bolted panels with precision cutting & bending
  • Design team follows IS rules to meet customer needs
  • Value engineering incorporated per customer demands

Passivation & Powder Coating

  • 9-tank process: Degreasing → Water Rinse I → De-Rusting → Water Rinse II → Surface Activation → Phosphating → Water Rinse III → Passivation
  • Oven drying at 120–130°C after 9-tank process
  • Dry powder coating within 24 hrs of oven drying
  • Epoxy-powder coated parts baked at 150–180°C
  • Regular chemical titration testing for quality

Assembly & Wiring

  • Components fitted and wired as per approved design
  • Specified switchgears for desired panel working logic
  • Manufactured as per IS standards
  • Value addition & suggestions by design engineering team
  • Quality Assurance Plan ensures proper functioning

Plant Equipment

Vertical Drilling Machine
Shearing Machine
Bending Machine
Cutting Machine
Bus Bar Bending Machine
Bus Bar Hydraulic Drilling Machine
4" Grinding Machine
5" Grinding Machine
Compressor Machine
Crimping Machine
Hand Drilling Machine
Jig Saw Machine
Blower
Hot Blower
Chain Pully (Remote)
Chain Pully (Manual)
Weighing Machine

Testing & QAP

Testing is performed by Quality Engineers to check panels as per all specifications, safety norms and quality aspects. The company possesses fully equipped facilities for in-house testing.

Testing ParameterInstrument Name
High Pressure TestingHigh Voltage Test Kit
Meggar Testing Insulation ResistanceMeggar
Load TestingLoad Bench
C.T. Testing TesterCT Testing Kit and Polarity
Operation TestingApplying Rated Supply Voltage as per Requirement of the Panel
Relay Testing TestSecondary Injection Relay Kit
